Engine Unit: Components

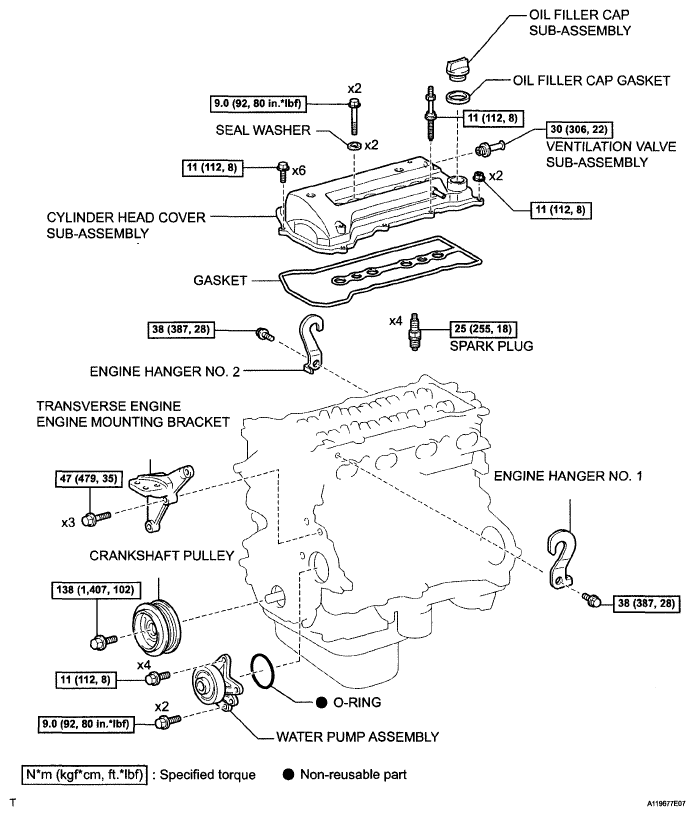

Fig 1: Engine Unit Components With Torque Specifications (1 Of 4)
G05233239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

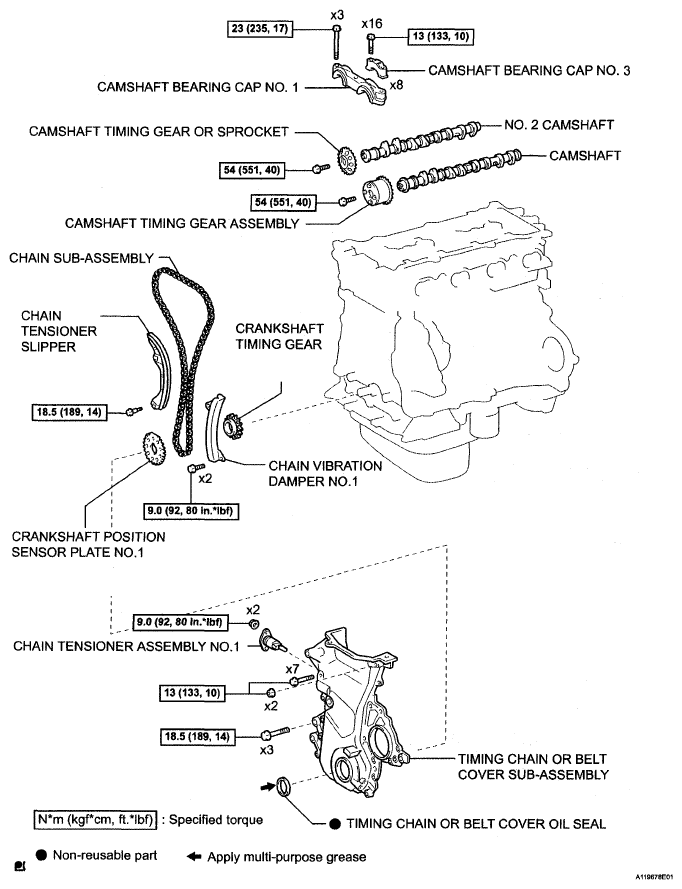

Fig 2: Engine Unit Components With Torque Specifications (2 Of 4)
G05233240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Unit Components With Torque Specifications (3 Of 4)
G05233241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

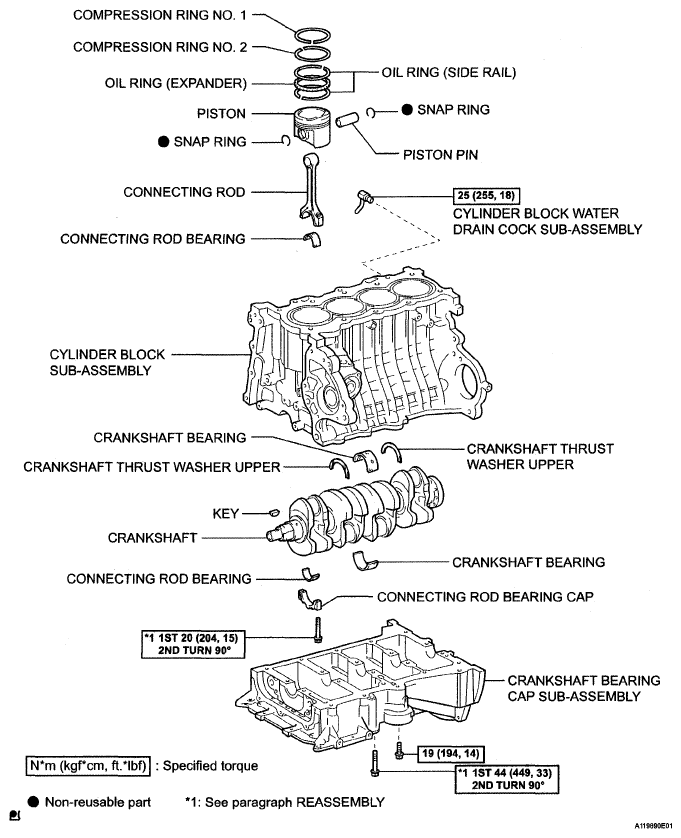

Fig 4: Engine Unit Components With Torque Specifications (4 Of 4)
G05233242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
