Instrument Panel Safety Pad: Removal

  1. BOLTS, SCREWS AND NUTS TABLE

    HINT:

    Indicate the bolts, screws and nuts, which are necessary for installation and removal of the instrument panel, in the illustration and the text with alphabets.

    1. Remove of bolts, screws and nuts table.

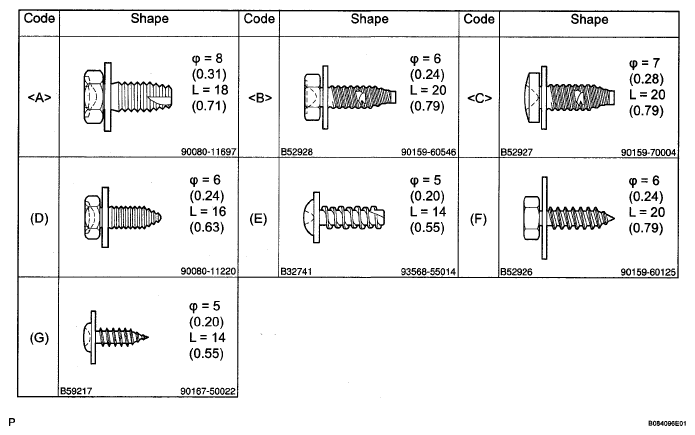

      Fig 1: Bolts, Screws And Nuts Length, Shape And Code Specification Chart
      G05237252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. INSPECT CENTER FRONT WHEEL
  4. REMOVE STEERING PAD (See  REMOVAL  )
  5. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  6. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  7. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY (See  REMOVAL  )
  8. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See  REMOVAL  )
  9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Using a molding remover, disengage the 4 clips and 3 claws.
    2. Disconnect connector, then remove the center instrument cluster finish panel sub-assembly.
  10. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  REMOVAL  )
  11. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
    1. Turn the shift lever sub-assembly counter clockwise and remove the shift lever knob sub-assembly.
      Fig 2: Identifying Center Instrument Cluster Finish Panel Sub-Assembly Clips And Claws
      G05237253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Power point socket models only:

      Disengage the 5 claws and remove the switch base.

      Fig 3: Identifying Switch Base Claws
      G05237254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the control knob.
    3. Remove the screw < E >.
    4. Using a molding remover, disengage the 2 clips and 7 claws, then pull out the center instrument cluster finish panel assembly.
    5. Disconnect the connectors.
  13. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (See  ON-VEHICLE INSPECTION  )
    Fig 4: Identifying Center Instrument Cluster Finish Panel Assembly Clips And Claws
    G05237255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE INSTRUMENT PANEL BOX
    1. Open the instrument panel box.
    2. Pull the instrument panel box upward to remove it.
      Fig 5: Removing Instrument Panel Box
      G05237256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. M/T Transaxle:

      Remove the 3 screws < E >.

    2. A/T Transaxle:

      Remove the 5 screws < E >.

    3. Using a screwdriver, disengage the claws, then remove the lower center instrument panel finish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Removing Lower Center Instrument Panel Finish Panel
      G05237257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FLOOR SHIFT ASSEMBLY (for Automatic Transaxle) (See  DISASSEMBLY  )
  17. REMOVE FLOOR SHIFT LEVER ASSEMBLY (for Manual Transaxle) (See  INSTALLATION  )
  18. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 9 claws, then remove the front door scuff plate LH.
  19. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

    Fig 7: Identifying Front Door Scuff Plate Claws LH
    G05237258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the cowl side trim clip.
    2. Disengage the 2 claws, then remove the cowl side trim board LH.
  21. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures for the RH side and LH side.

    Fig 8: Removing Cowl Side Trim Board LH
    G05237259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Open the glove compartment door.
    2. Remove the screw < G > and glove compartment door stopper sub-assembly.
      Fig 9: Identifying Glove Compartment Door Stopper Sub-Assembly Screw
      G05237260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Deform the upper part of the glove compartment door assembly to release the stoppers.
    2. Pull the glove compartment door assembly upward to remove it.
  24. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  INSTALLATION  )
    Fig 10: Identifying Glove Compartment Door Assembly Stoppers
    G05237261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE METER HOOD SUB-ASSEMBLY
    1. Using a molding remover, disengage the 5 claws and 3 clips, then remove the meter hood sub-assembly.
      Fig 11: Identifying Meter Hood Sub-Assembly Claws And Clips
      G05237262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the screw < E >.
    2. Disengage the 2 claws as shown in the illustration.
      Fig 12: Identifying Combination Meter Assembly Screw
      G05237065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect connector, then remove the combination meter assembly, as shown in the illustration.
      Fig 13: Identifying Combination Meter Assembly
      G05237059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Using a molding remover, disengage the 4 clips and 2 claws.
    2. Pull out the instrument cluster finish panel sub-assembly.
      Fig 14: Identifying Instrument Cluster Finish Panel Sub-Assembly Clips And Claws
      G05237265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT PILLAR GARNISH LH
    1. Disengage the 3 clips and 2 claws, then remove the front pillar garnish LH.
  29. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and LH side.

  30. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the 3 screws < E > and bolt < A >.
    2. Disengage the 3 clips and 9 claws.
    3. Pull the upper instrument panel sub-assembly rearward to remove it.
      Fig 15: Identifying Front Pillar Garnish Clips And Claws LH
      G05237266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors.

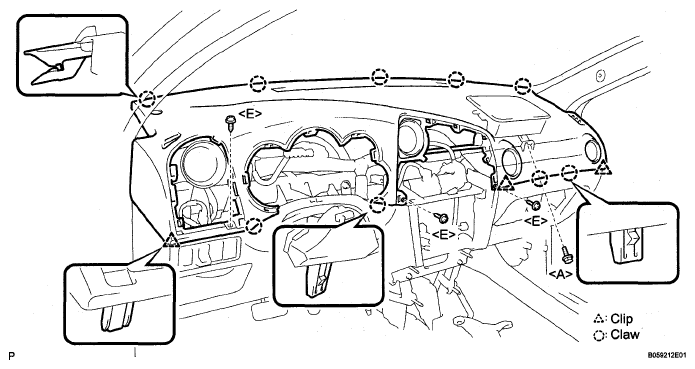

      Fig 16: Identifying Upper Instrument Panel Sub-Assembly Clips And Claws
      G05237267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Disconnect the hood lock control cable and DLC3 connector.
    2. Using a clip remover, remove the 4 clips.
    3. Remove the 7 bolts < B > or < C >, < D > and 4 screws
    4. Disengage the wire harness 4 clamps.
    5. Remove the instrument panel sub-assembly lower.

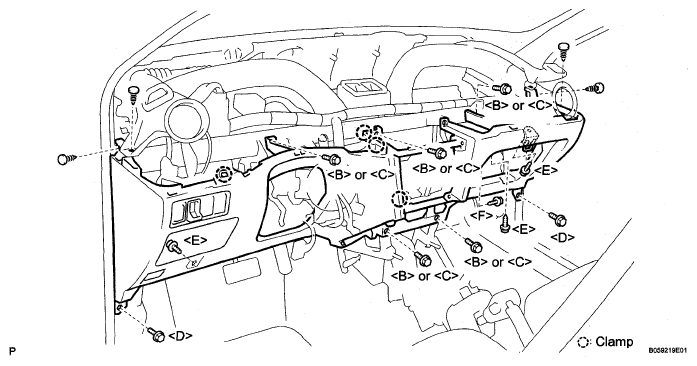

      Fig 17: Identifying Lower Instrument Panel Sub-Assembly Clamps
      G05237268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL
    1. Using a molding remover, disengage the 2 claws.
    2. Pull out the center No. 2 instrument cluster finish panel.
  33. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL
  34. REMOVE INSTRUMENT PANEL BOX
  35. REMOVE CENTER INSTRUMENT PANEL BRACKET SUB-ASSEMBLY
