RH Relay Block And RH Junction Block - Right Side of the Instrument Panel Reinforcement

Fig 1: RH R/B And J/B (1 Of 2) Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

RH R/B AND J/B RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
INV Relay
P-Point Relay
HTR Relay

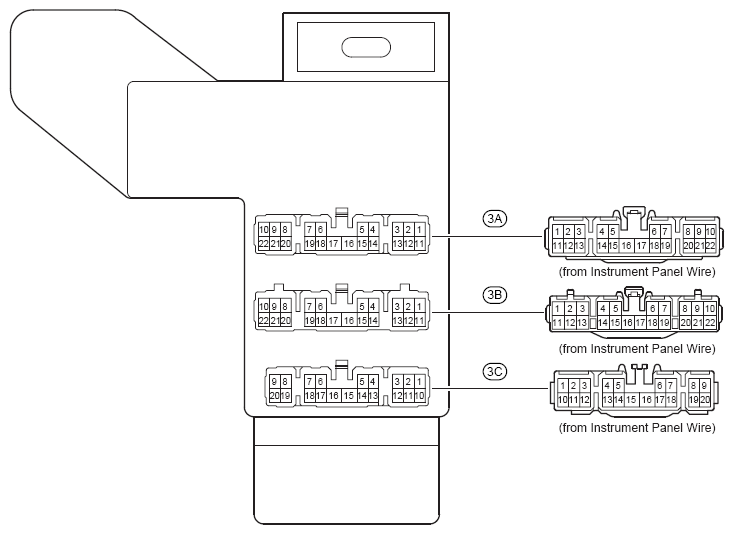

Fig 2: RH R/B And J/B (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
