Turn Signal and Hazard Warning Light: Notes

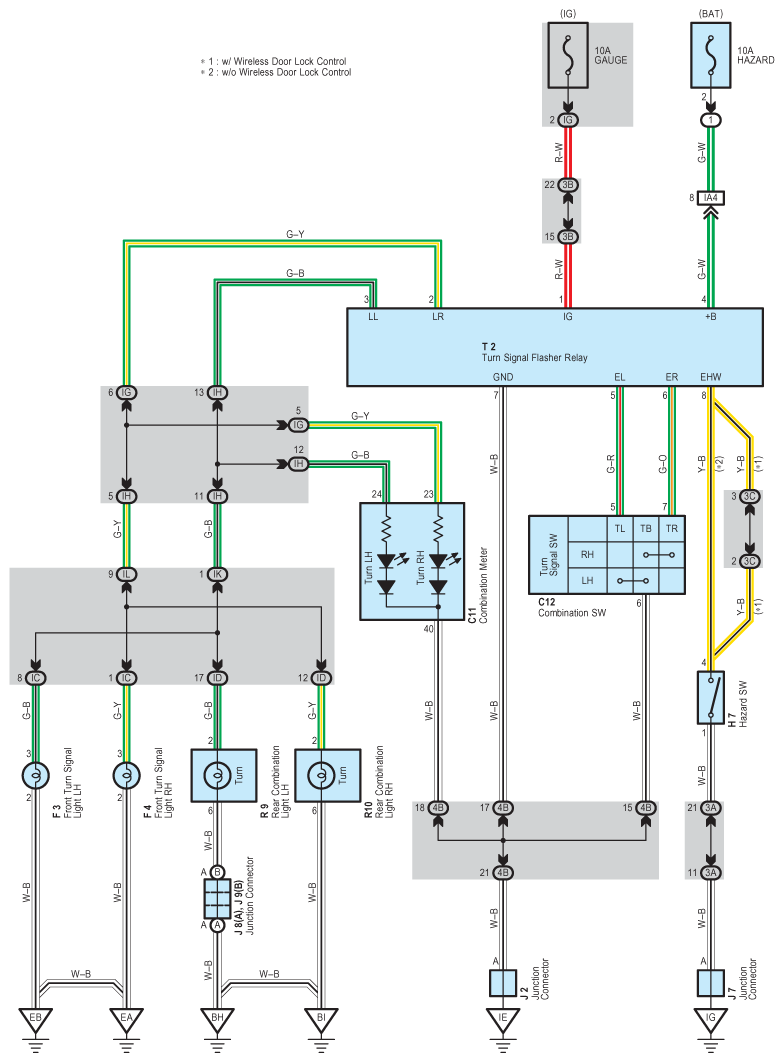

Fig 1: Turn Signal And Hazard Warning Light System Wiring Diagram

G08790381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
