Roof Headlining: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Using a screwdriver, remove the scuff plate. HINT: Tape the screwdriver tip before use.
  2. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 1: Identifying Front Door Scuff Plate
    G05237455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip labeled A.
    2. Using a screwdriver, disengage the 2 clips labeled B and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

  4. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 2: Identifying Cowl Side Trim Board Clips
    G05237456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR DOOR SCUFF PLATE LH
    1. Using a screwdriver, remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  6. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  7. REMOVE FRONT DOOR OPENING TRIM LH
  8. REMOVE FRONT DOOR OPENING TRIM RH
    Fig 3: Identifying Rear Door Scuff Plate
    G05237457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR OPENING TRIM LH
  10. REMOVE REAR DOOR OPENING TRIM RH
  11. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Using a screwdriver, pull the garnish lower upward to remove it.

      HINT:

      Tape the screwdriver tip before use.

  12. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 4: Identifying Center Pillar Lower Garnish RH
    G05237458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER PILLAR GARNISH LH
    1. Using a screwdriver, remove the shoulder anchor cover cap.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and disconnect the front seat outer belt (shoulder anchor side).
    3. Remove the bolt and disconnect the front seat outer belt (floor anchor side).
      Fig 5: Removing Shoulder Anchor Cover Cap
      G05196474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, remove the pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

  14. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE NO. 2 DECK BOARD
    Fig 6: Identifying Center Pillar Garnish Clip
    G05196475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE DECK BOARD SUB-ASSEMBLY
    1. Remove the 2 bolts and deck board.
      Fig 7: Identifying Deck Board Bolts
      G05237461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DECK FLOOR BOX
    1. Loosening the spare wheel carrier and remove the deck floor box rear.
      Fig 8: Identifying Rear Deck Floor Box
      G05237462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LUGGAGE COMPARTMENT TRAY
    1. Remove the 5 bolts and luggage compartment tray.
  19. REMOVE BACK DOOR WEATHERSTRIP
    Fig 9: Identifying Luggage Compartment Tray Bolts
    G05237463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR DECK TRIM COVER
    1. Remove the 2 clips.
    2. Using a molding remover, remove the deck trim cover rear.
  21. REMOVE TONNEAU COVER ASSEMBLY
  22. REMOVE REAR SEAT CUSHION ASSEMBLY

    HINT:

    See REMOVAL

  23. REMOVE REAR SEATBACK ASSEMBLY

    HINT:

    See REMOVAL

    Fig 10: Identifying Rear Deck Trim Cover Claws
    G05237464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR SEAT SIDE GARNISH LH
    1. Remove the bolt and seat back hinges.
    2. Using a screwdriver, remove the side garnish.

      HINT:

      Tape the screwdriver tip before use.

  25. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 11: Identifying Rear Seat Side Garnish Clips And Claws
    G05237465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 4 bolt and 4 rope hooks.
    2. Using a screwdriver, disengage the 3 claws and 3 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

  27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 12: Identifying Deck Trim Side Panel Assembly Clips And Claws LH
    G05237466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE ROOF SIDE GARNISH INNER LH
    1. Using a screwdriver, remove the seat belt anchor cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and rear seat 3-point belt.
      Fig 13: Removing Seat Belt Anchor Cover
      G05237467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, remove the roof side garnish.

      HINT:

      Tape the screwdriver tip before use.

  29. REMOVE ROOF SIDE GARNISH INNER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 14: Identifying Roof Side Inner Garnish LH Clips
    G05237468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT PILLAR GARNISH LH
    1. Using a screwdriver, remove the pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

  31. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 15: Identifying Front Pillar Garnish Clips
    G05237469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor.
  33. REMOVE VISOR ASSEMBLY RH
    1. Remove the 2 screws and visor.
      Fig 16: Identifying Visor Screws
      G05196481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE MAP LIGHT ASSEMBLY
    1. Remove the screw.
    2. Using a screwdriver, disengage the 4 clips and remove the light lens and cover.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the screw.
    4. Using a screwdriver, remove the map light.

      HINT:

      Tape the screwdriver tip before use.

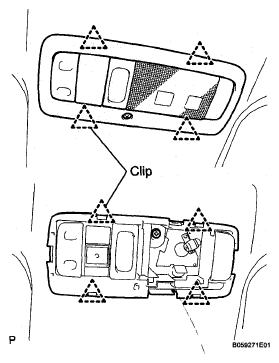

      Fig 17: Identifying Map Light Assembly Clips
      G05237471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 INTERIOR LIGHT ASSEMBLY
    1. Using a screwdriver, remove the lens cover.
    2. Using a screwdriver, remove the room light, as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

      Fig 18: Removing No. 1 Interior Light Assembly
      G05237472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, remove the 2 grip covers.
    2. Remove the 2 screws and assist grip.

      HINT:

      Tape the screwdriver tip before use.

      Fig 19: Removing Assist Grip Sub-Assembly
      G05196484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it 90° counterclockwise.
  38. REMOVE SUN ROOF OPENING TRIM MOLDING (w/ SLIDING ROOF)
    Fig 20: Removing Visor Holder
    G05196485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the 2 clips and roof headlining.
    2. Disconnect the wire harness.
      Fig 21: Identifying Roof Headlining Assembly Clips
      G05237475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
