DTC B1795 Occupant Classification ECU Malfunction: Wiring Diagram

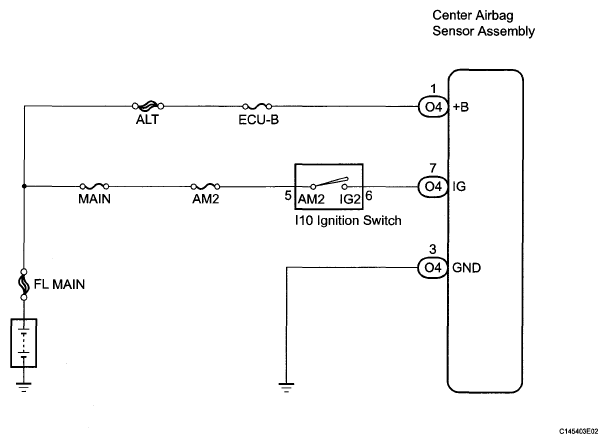

Fig 1: Occupant Classification ECU Malfunction - Wiring Diagram

G05236552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
