Air Conditioning Unit: Components

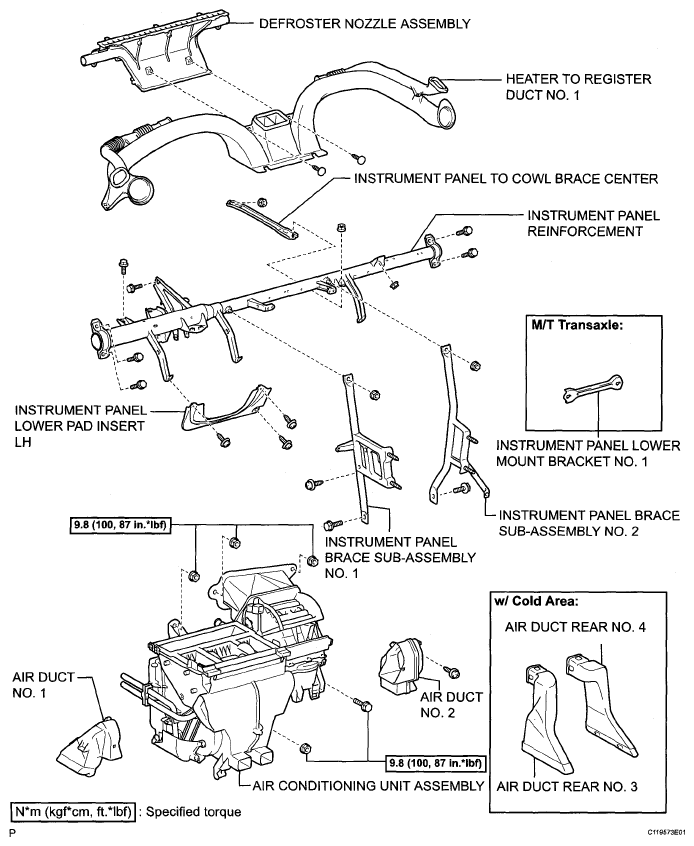

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 2)
G05236207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

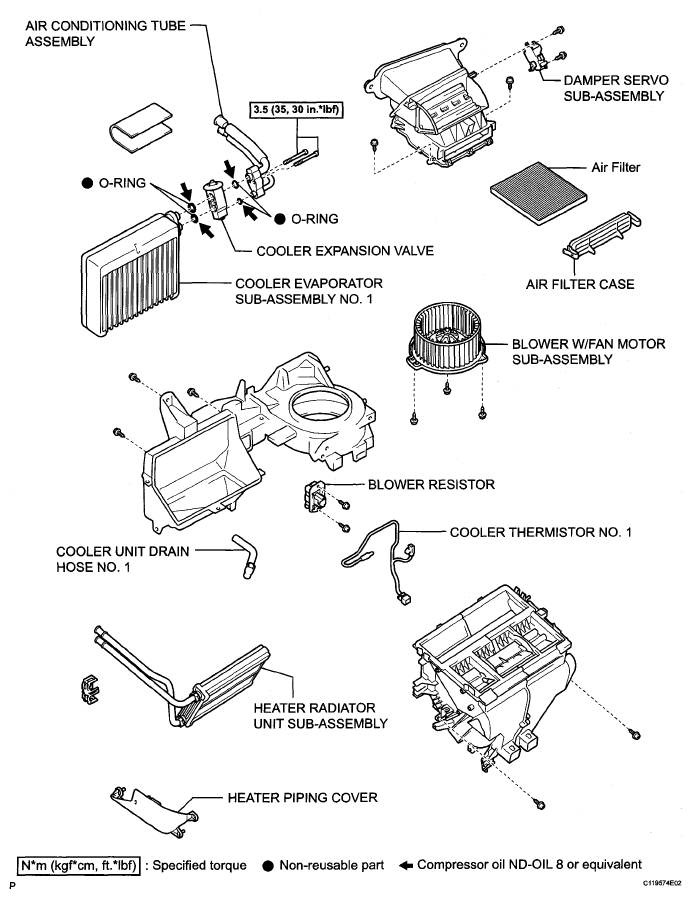

Fig 2: Air Conditioning Unit Replacement Components With Torque Specification (2 Of 2)
G05236208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
