Charging System (1ZZ-FE): Generator: Components

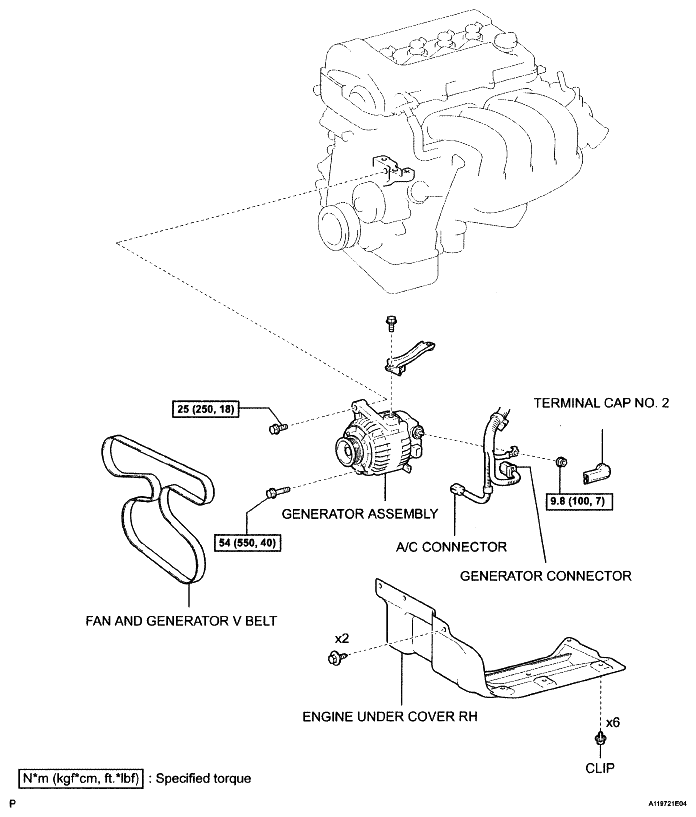

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G05233733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

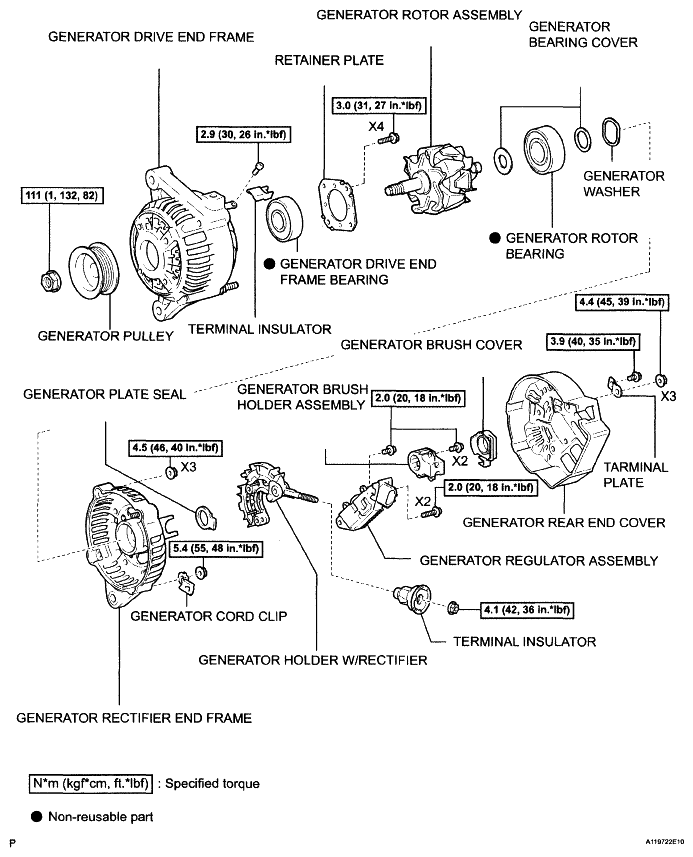

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G05233734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
