Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

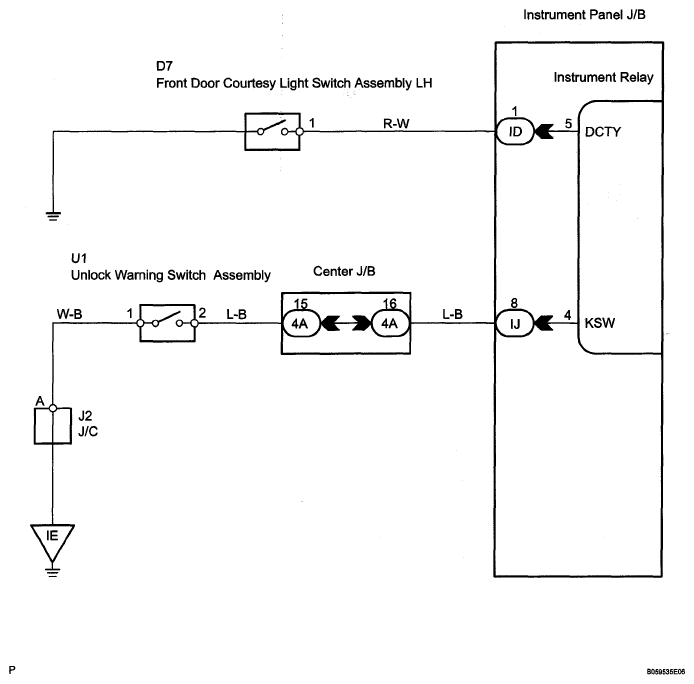

Fig 1: Key Lock-In Prevention Function Does Not Work Properly - Wiring Diagram

G05236960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
