Home >> Toyota >> 2007 >> Land Cruiser >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case - Hf2A >> Transfer Unit >> Components

Transfer Unit: Components

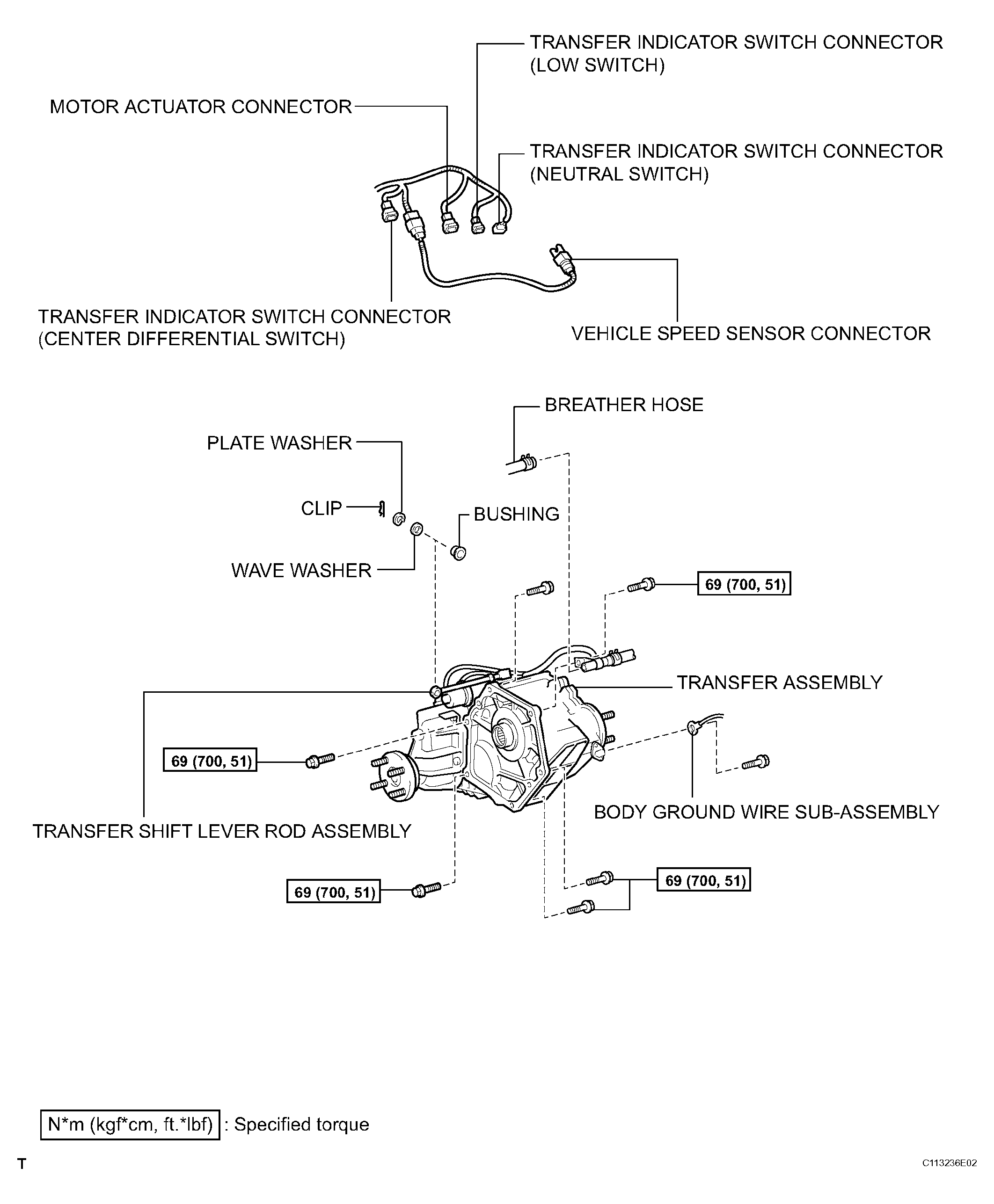

Fig 1: Identifying Transfer Unit Replacement Components With Torque Specifications (1 Of 2)
G04437017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

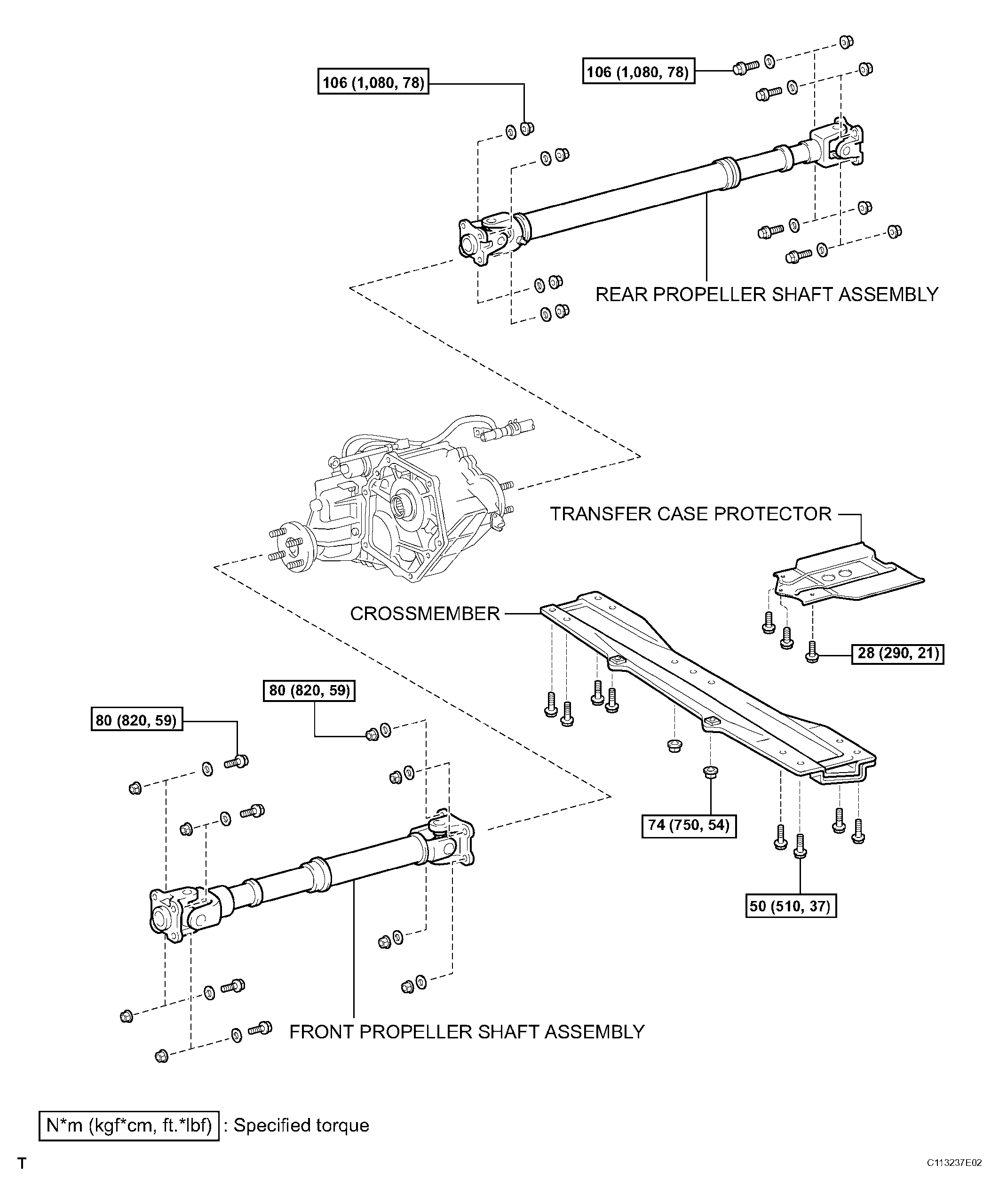

Fig 2: Identifying Transfer Unit Replacement Components With Torque Specifications (2 Of 2)
G04437018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
