Transfer Shift Lever Assembly: Components

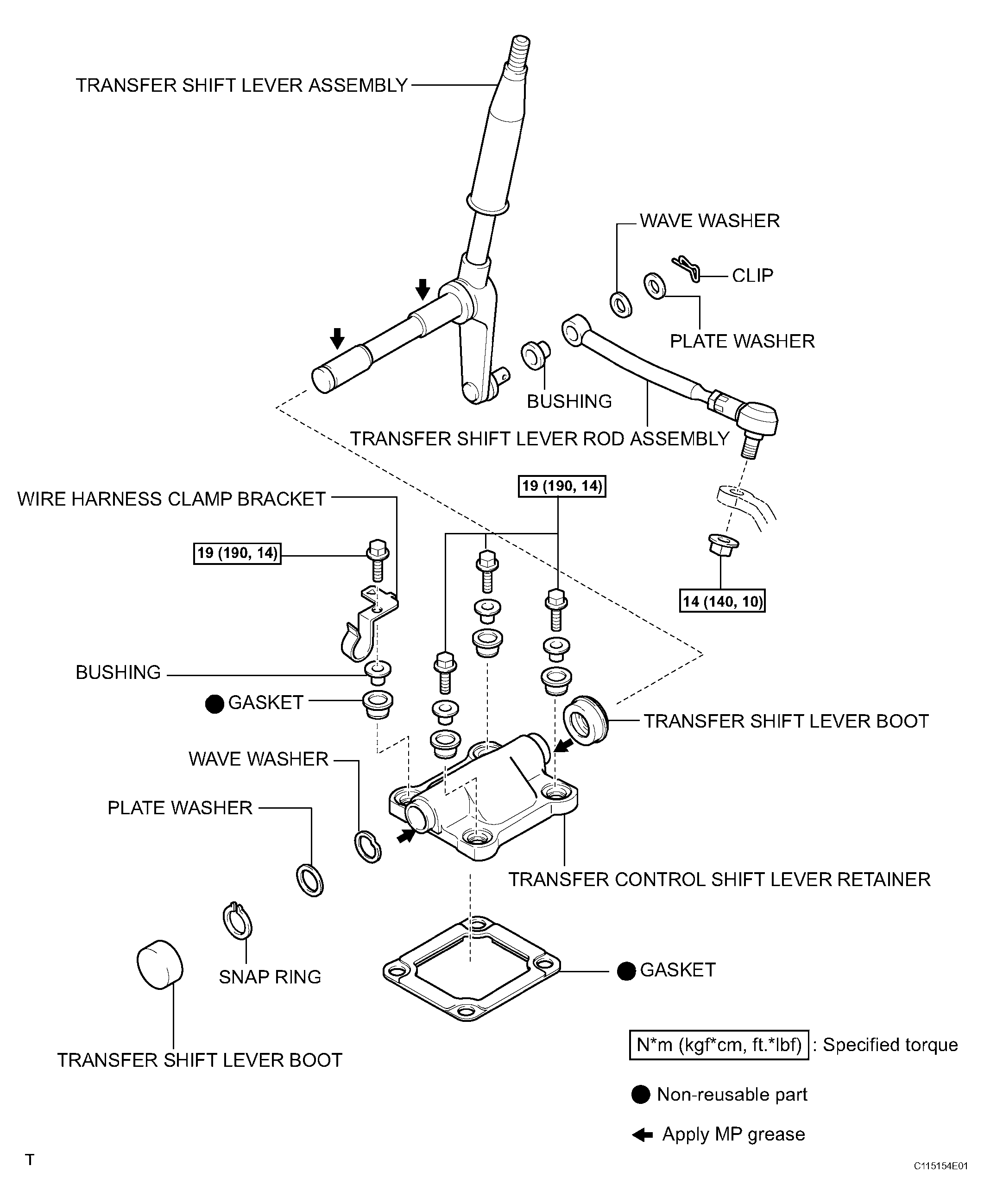

Fig 1: Transfer Shift Lever Assembly Replacement Components With Torque Specifications

G04436962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
