Rear Extension Housing: Components

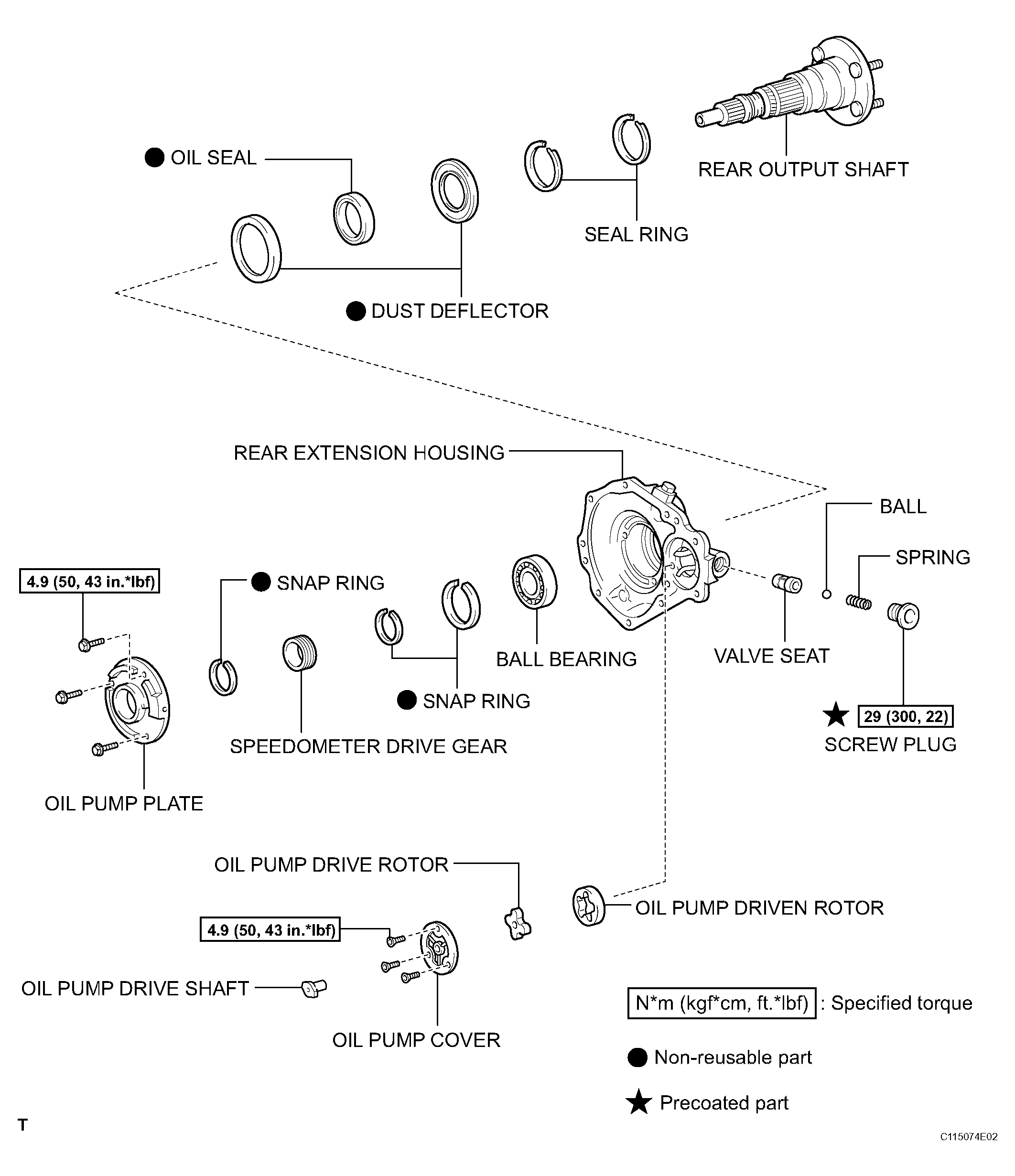

Fig 1: Rear Extension Housing Replacement Components With Torque Specifications

G04437095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
