Center Differential: Components

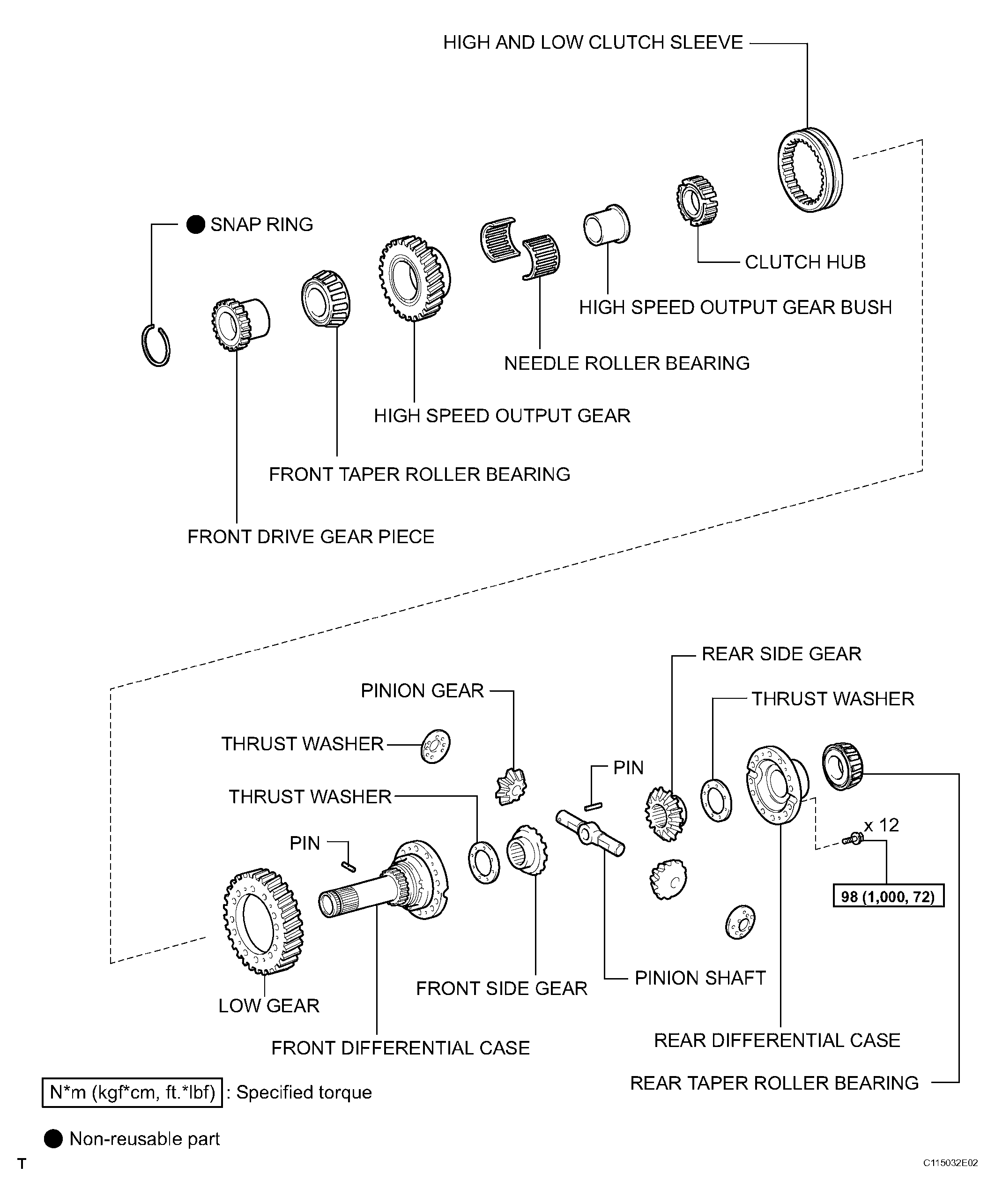

Fig 1: Center Differential Replacement Components With Torque Specifications

G04437050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
