Home >> Toyota >> 2007 >> Land Cruiser >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - A750F >> Speed Sensor >> Components

Speed Sensor: Components

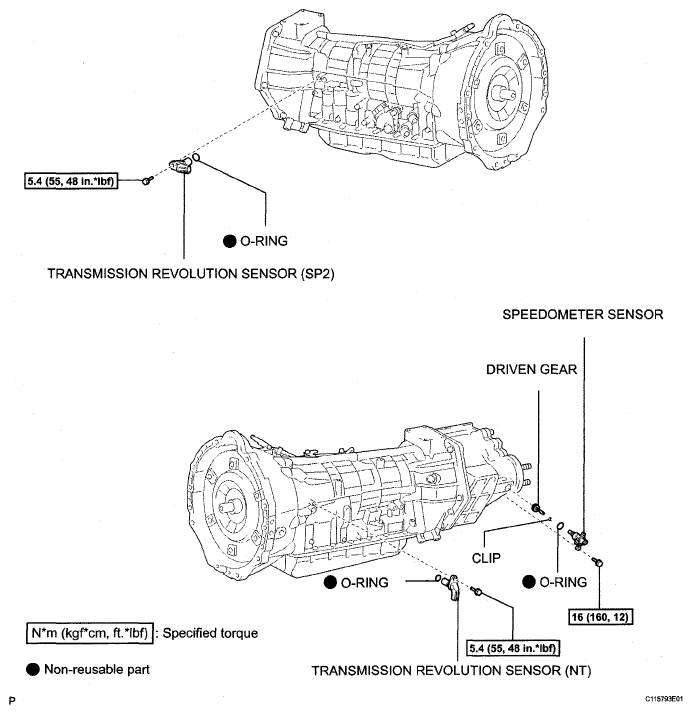

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G05197077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
