System Diagram

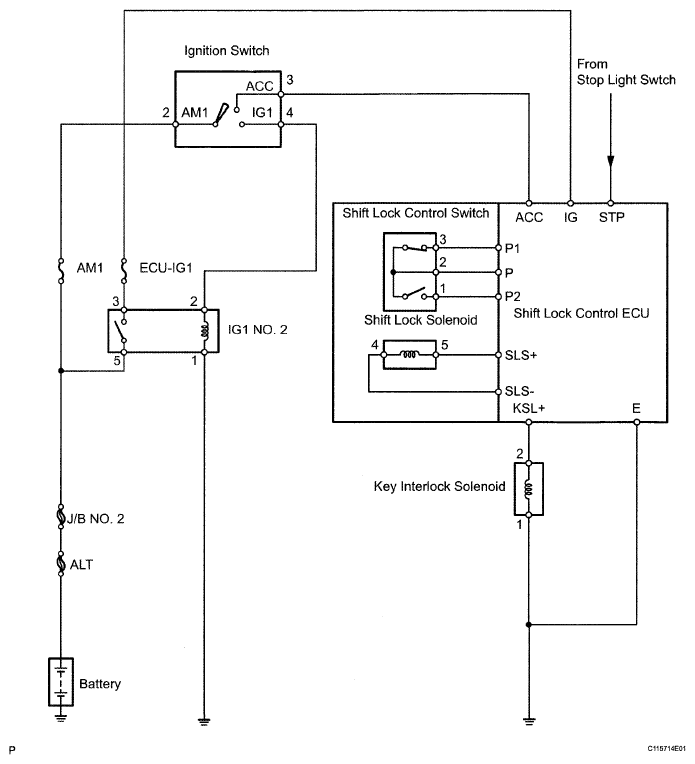

Fig 1: Shift Lock System Diagram

G05197121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
