Rear Shock Absorber: Disposal

  1. DISPOSE OF REAR SHOCK ABSORBER ASSEMBLY
    1. Before discarding the shock absorber, drill a hole of 2 to 3 mm (0.079 to 0.118 in.) in diameter at the location shown in Fig 1 to discharge the gas inside.
      NOTE:
      • When drilling, chips may fly out, so work carefully.
      • The gas is colorless, odorless and non-poisonous.

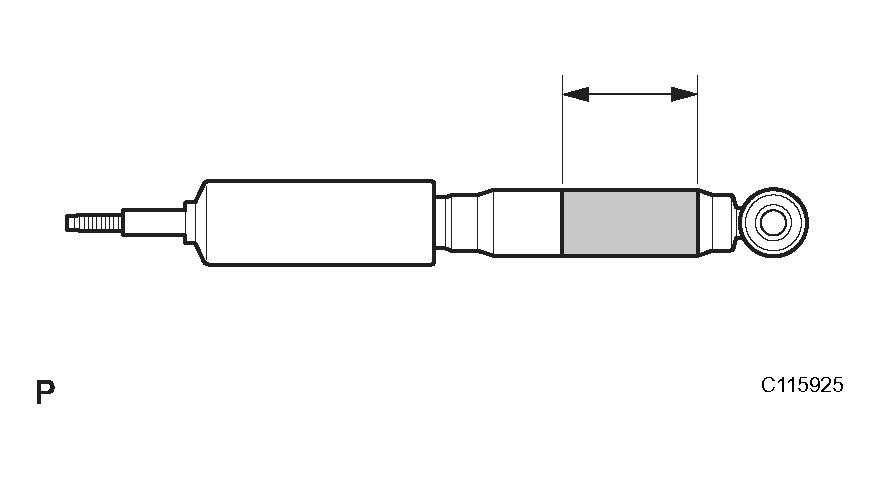

        Fig 1: Identifying Rear Shock Absorber Drill Hole Diameter Location
        G04437599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
