Front Upper Suspension Arm: Components

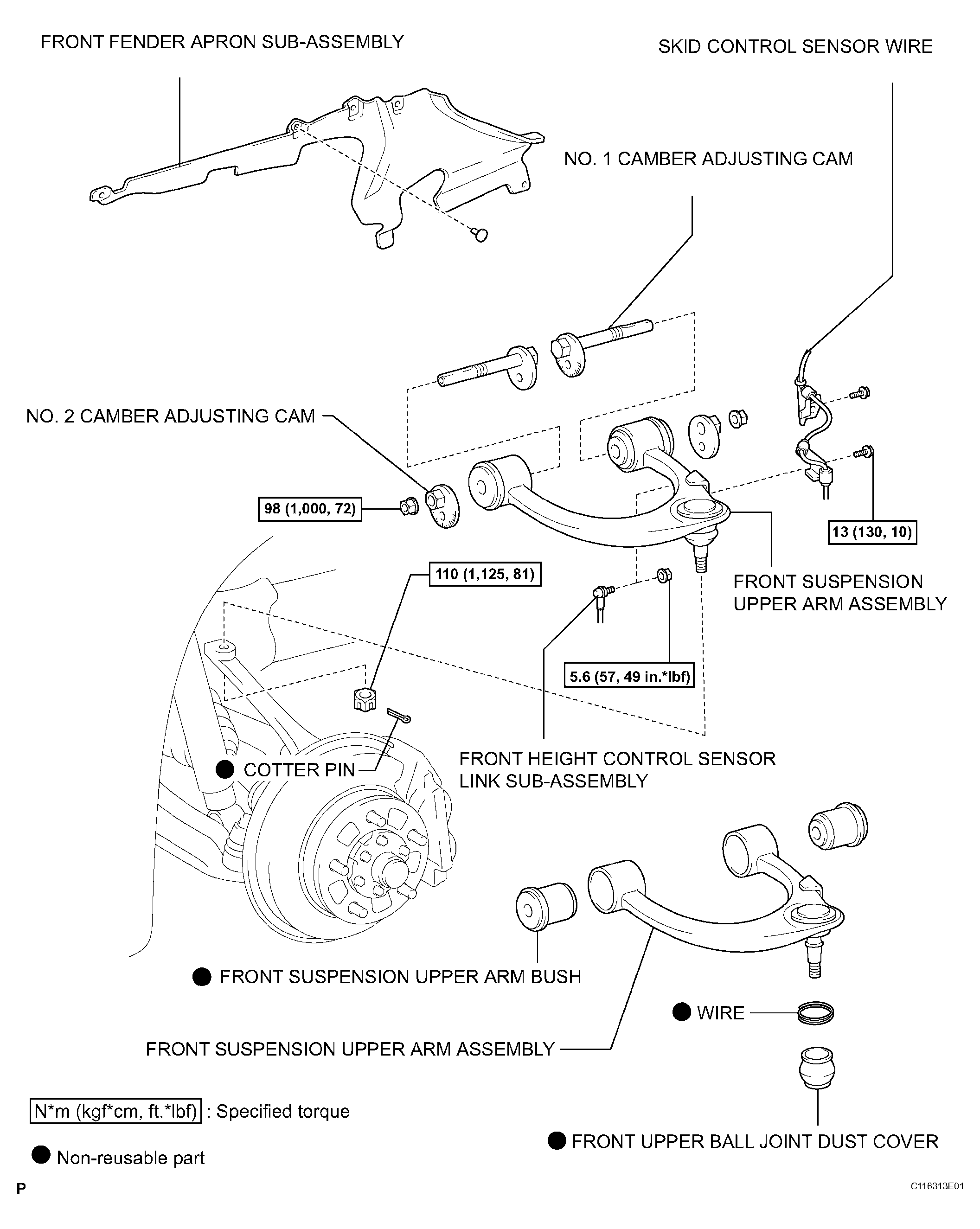

Fig 1: Front Upper Suspension Arm Replacement Components & Torque Specification

G04437564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
