Front Lower Suspension Arm: Replacement

REPLACE FRONT NO. 1 LOWER ARM BUSH
1. Using a chisel and hammer, pry up the flange of the No. 1 bush.

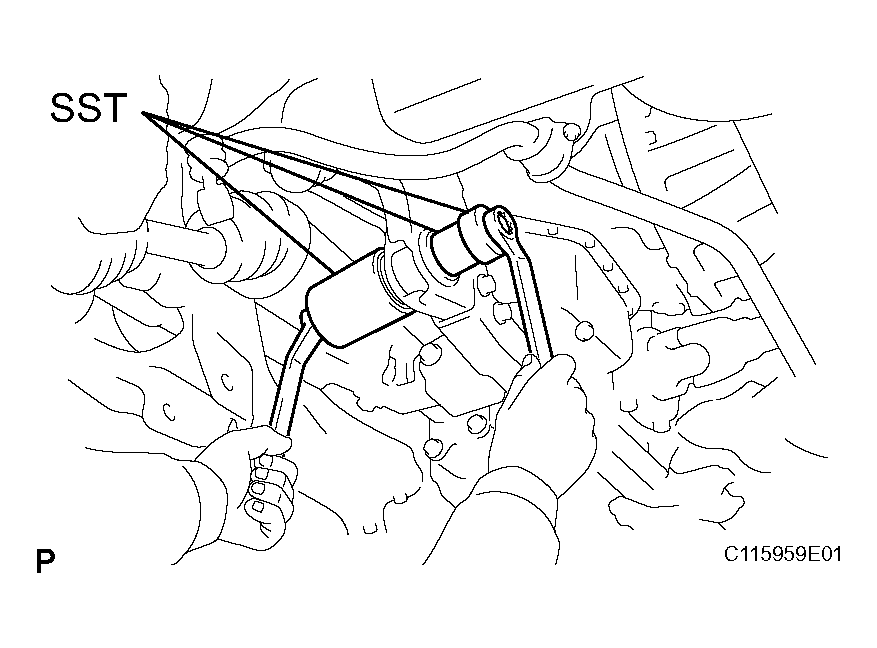

2. Using SST, press out the bush.
  SST 09710-30021 (09710-03101), 09950-00020, 09950-00030, 09950-40011 (09957-04010)

  Fig 1: Pressing Out Bush Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

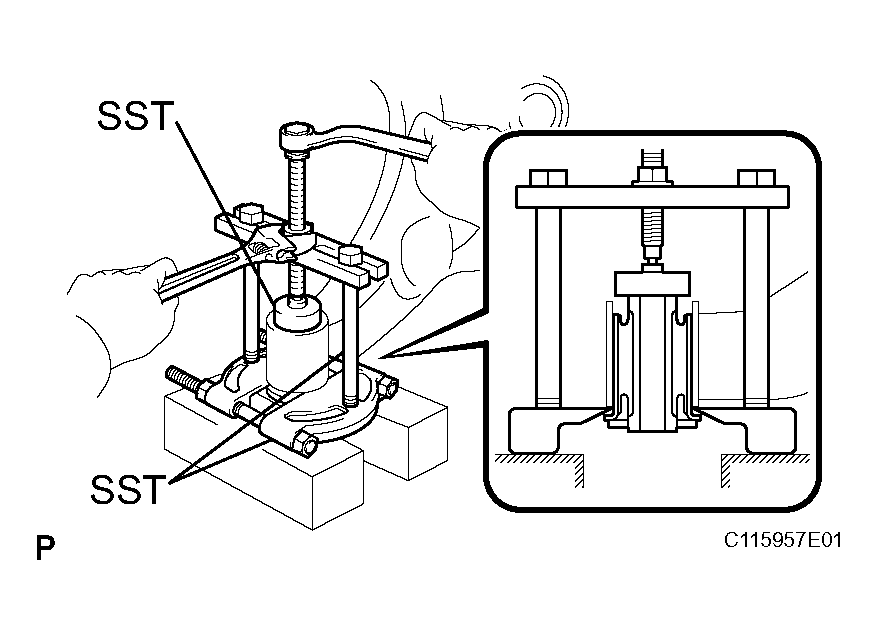

3. Using SST and a press, press in a new bush.
  SST 09726-36010

  Fig 2: Pressing In New Bush Using SST & Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE FRONT NO. 2 LOWER ARM BUSH

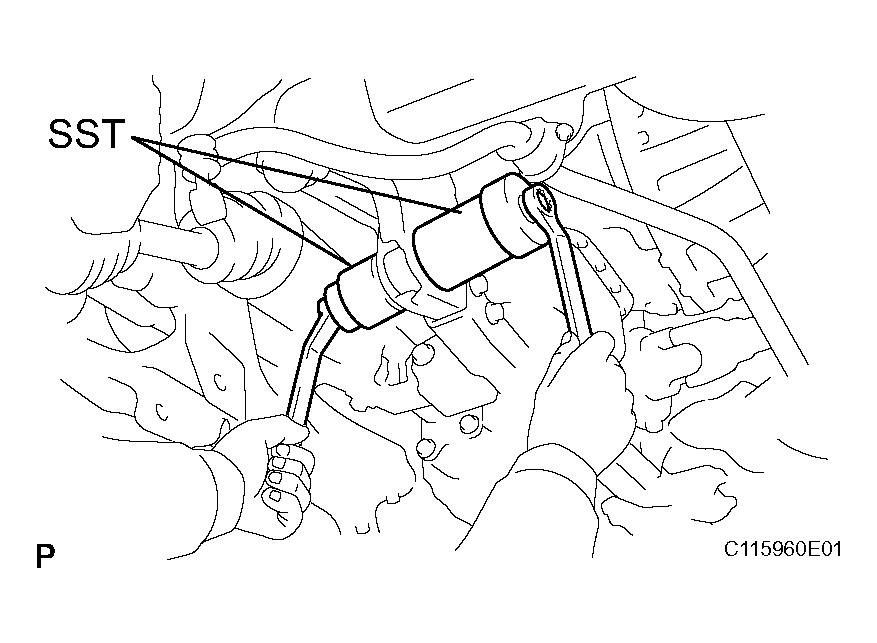

1. Using SST, remove the bush.
  SST 09710-22021 (09710-01071), 09726-35011 (09726-05021), 09830-36010

  Fig 3: Removing Bush Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install a new bush.
  SST 09830-36010, 09631-32020

  Fig 4: Installing New Bush Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE LOWER BALL JOINT DUST COVER
1. Remove the wire and dust cover.
2. Coat the ball joint with grease in the boot kit.
3. Install a new dust cover and wire.

  Fig 5: Installing New Dust Cover & Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
