Front Lower Suspension Arm: Components

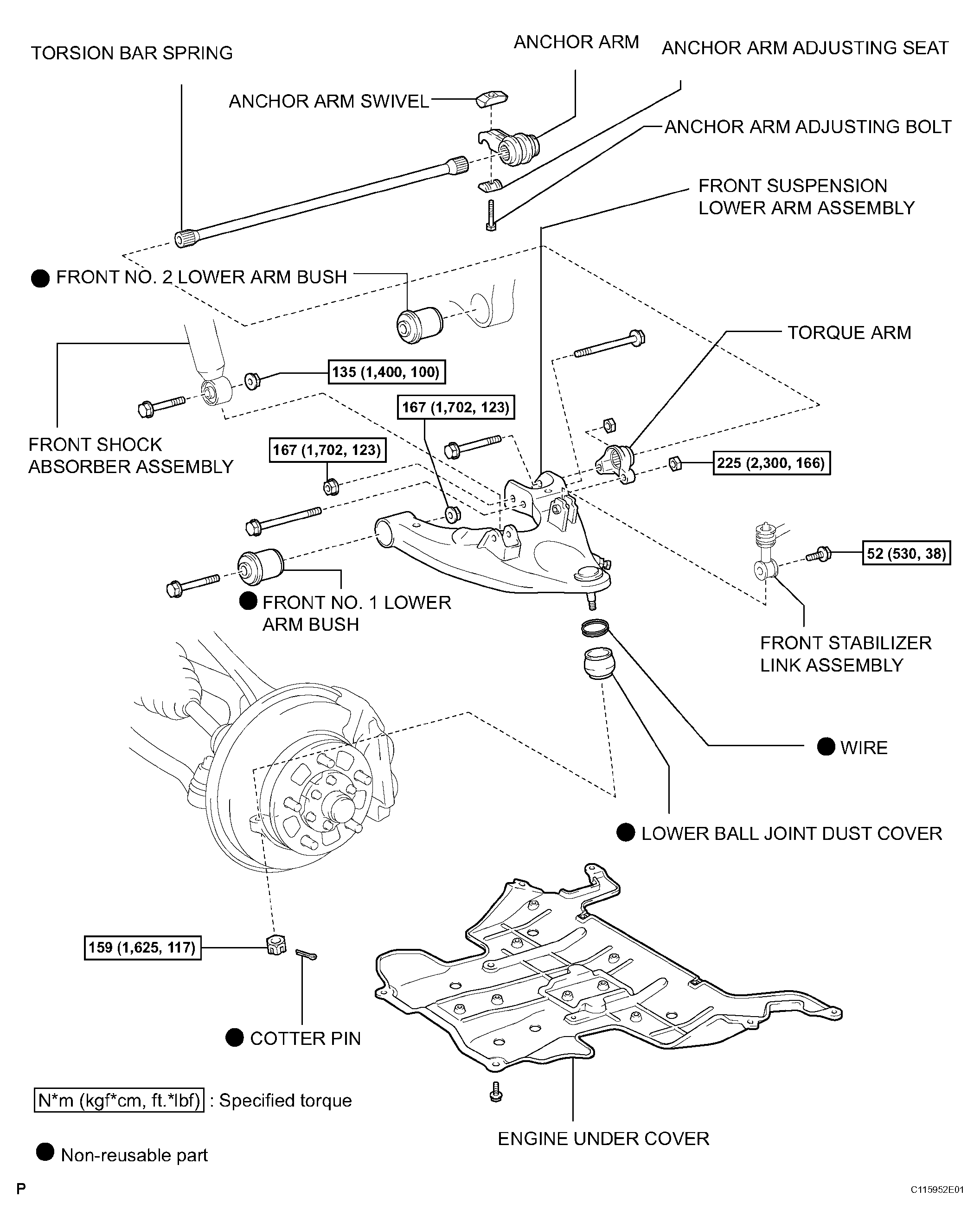

Fig 1: Front Lower Suspension Arm Replacement Components & Torque Specification

G04437573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
