Vane Pump: Components

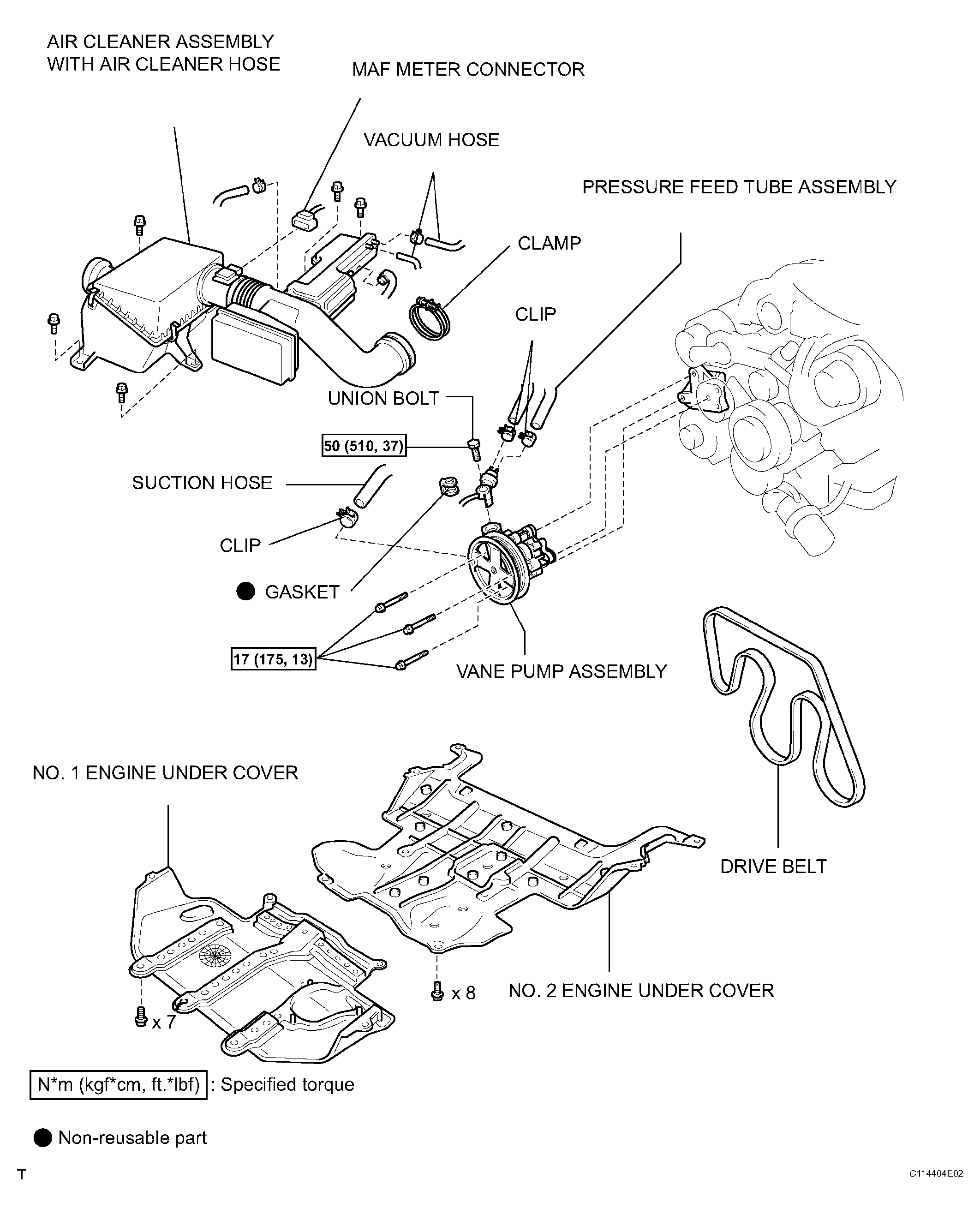

Fig 1: Vane Pump Replacement Components & Torque Specification (1 Of 2)
G04437810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

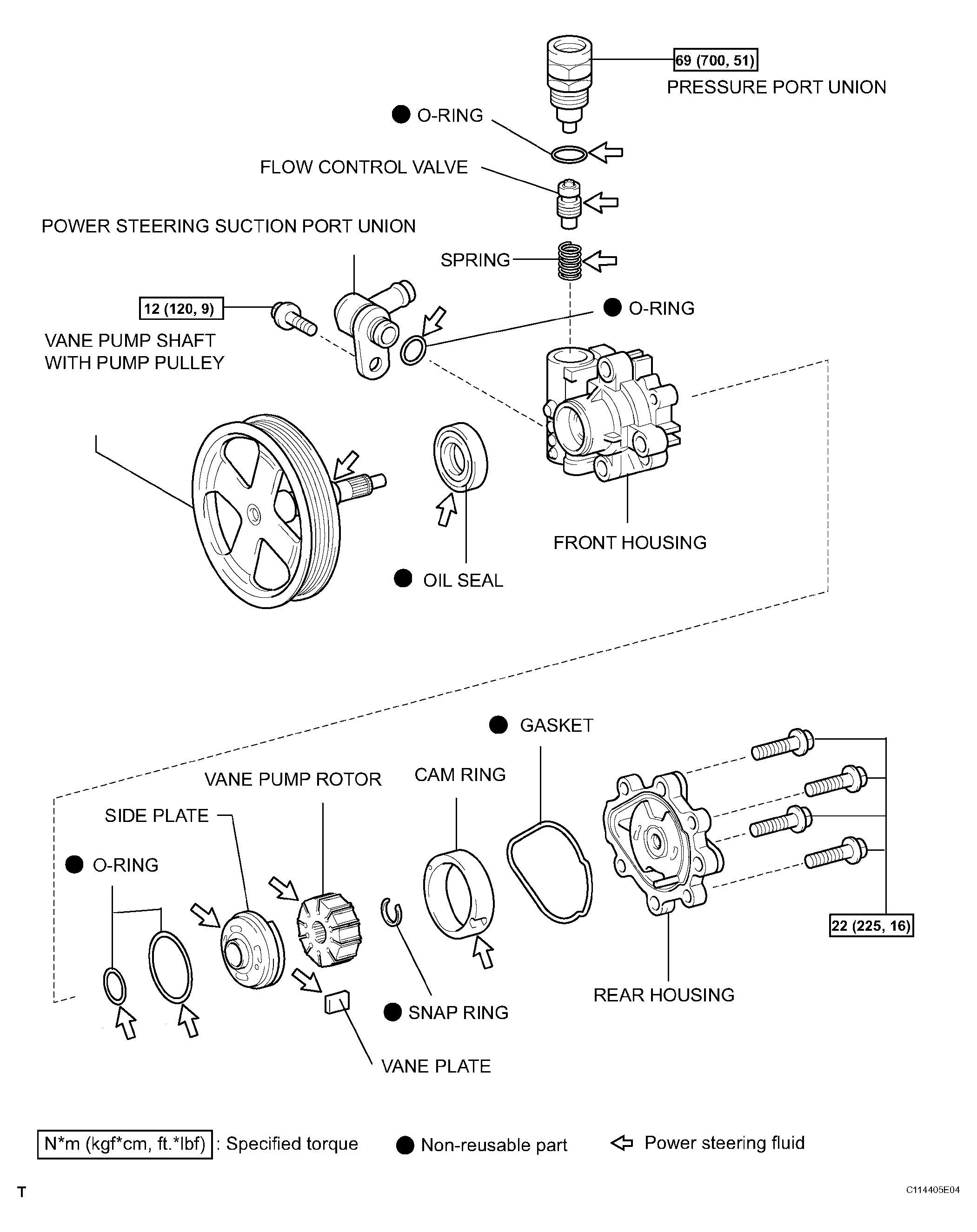

Fig 2: Vane Pump Replacement Components & Torque Specification (2 Of 2)
G04437811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
