Rear Seat Inner Belt Assembly: Components

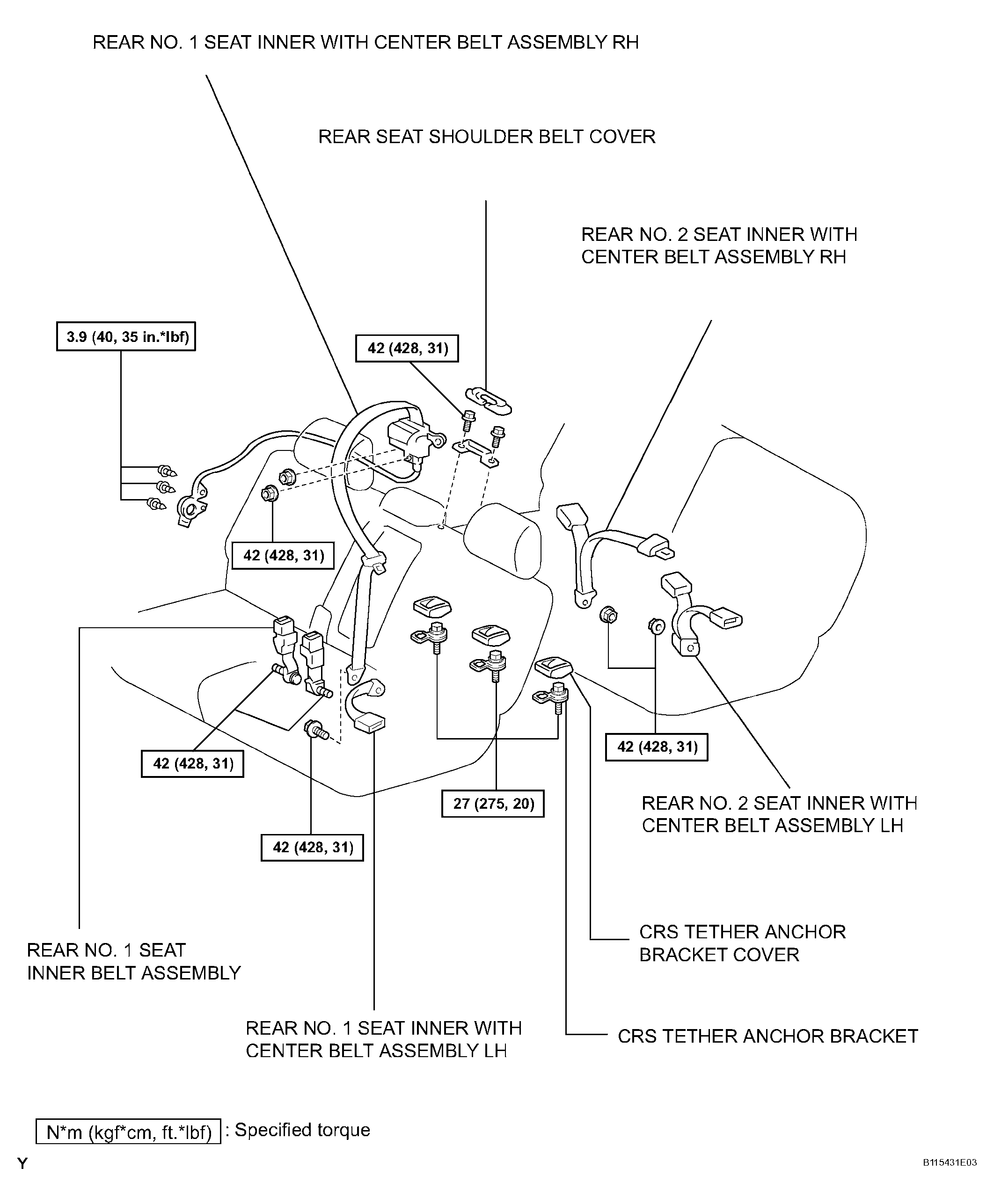

Fig 1: Rear Seat Inner Belt Assembly Replacement Components & Torque Specification

G04438414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
