Front Seat Inner Belt Assembly: Components

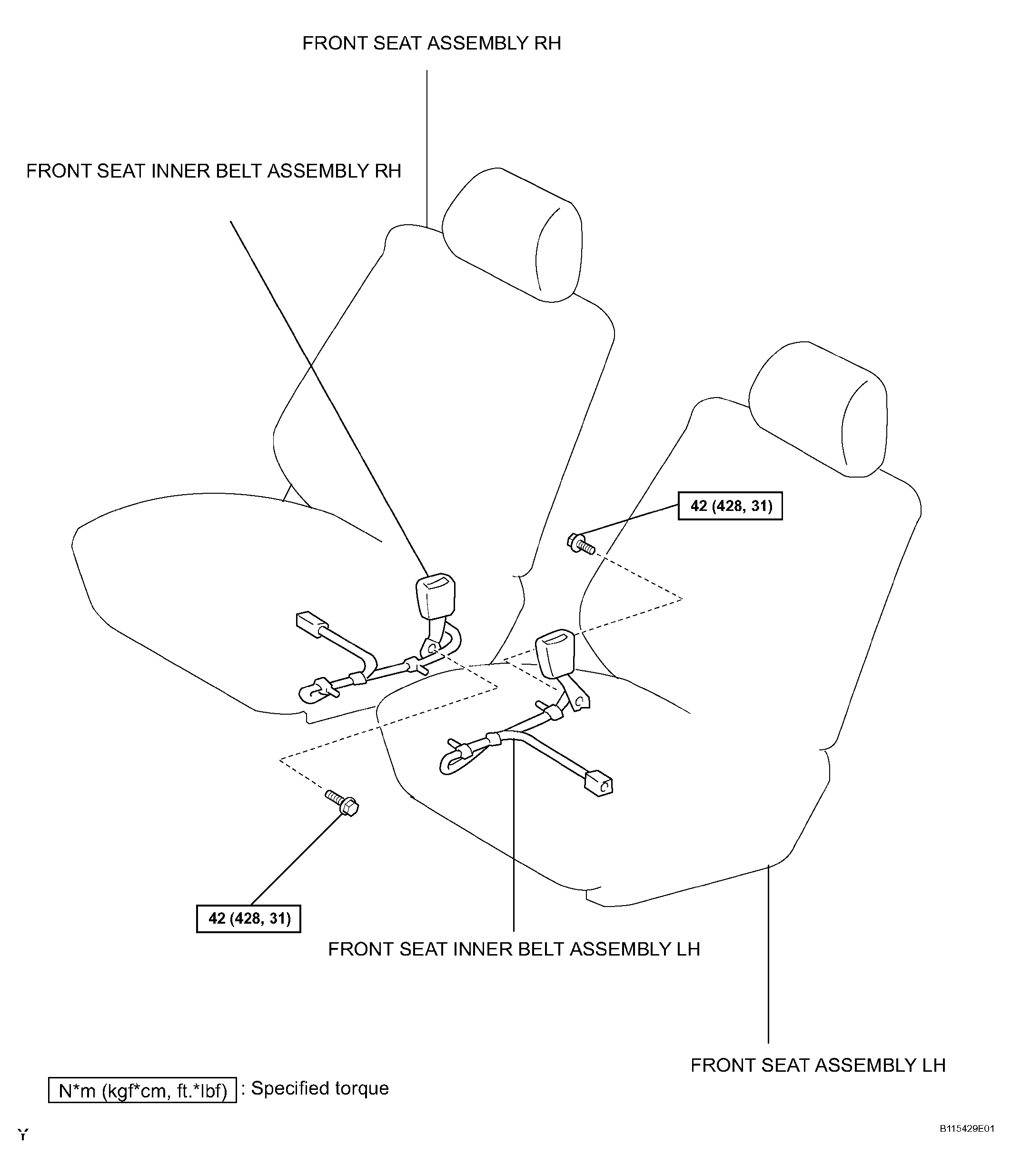

Fig 1: Front Seat Inner Belt Assembly Replacement Components & Torque Specification

G04438379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
