Register Transmitter ID

Set the tire pressure of all wheels (including spare tire) to pressure specified on the tire and loading information label.
Connect the intelligent tester (with CAN VIM) to DLC3.
Turn ignition switch to ON position.
Read and record the transmitter IDs (ID1 to ID5) by using the DATA LIST. See Fig 1 and Fig 2 .
Select the "REGIST TIRE" mode.
Select the "MAIN" registration mode (or select "2nd" when registering in 2nd). See Figure.
NOTE: The tire pressure warning selector switch is located inside the glove box.
Input the transmitter IDs (ID1 to ID5) using the intelligent tester and transmit it to the tire pressure monitor ECU.
Set the ID transmission condition to "ID Registration is complete".

NOTE: If steps 4- 8 are not completed within 5 minutes, the system will return to the normal operation mode.

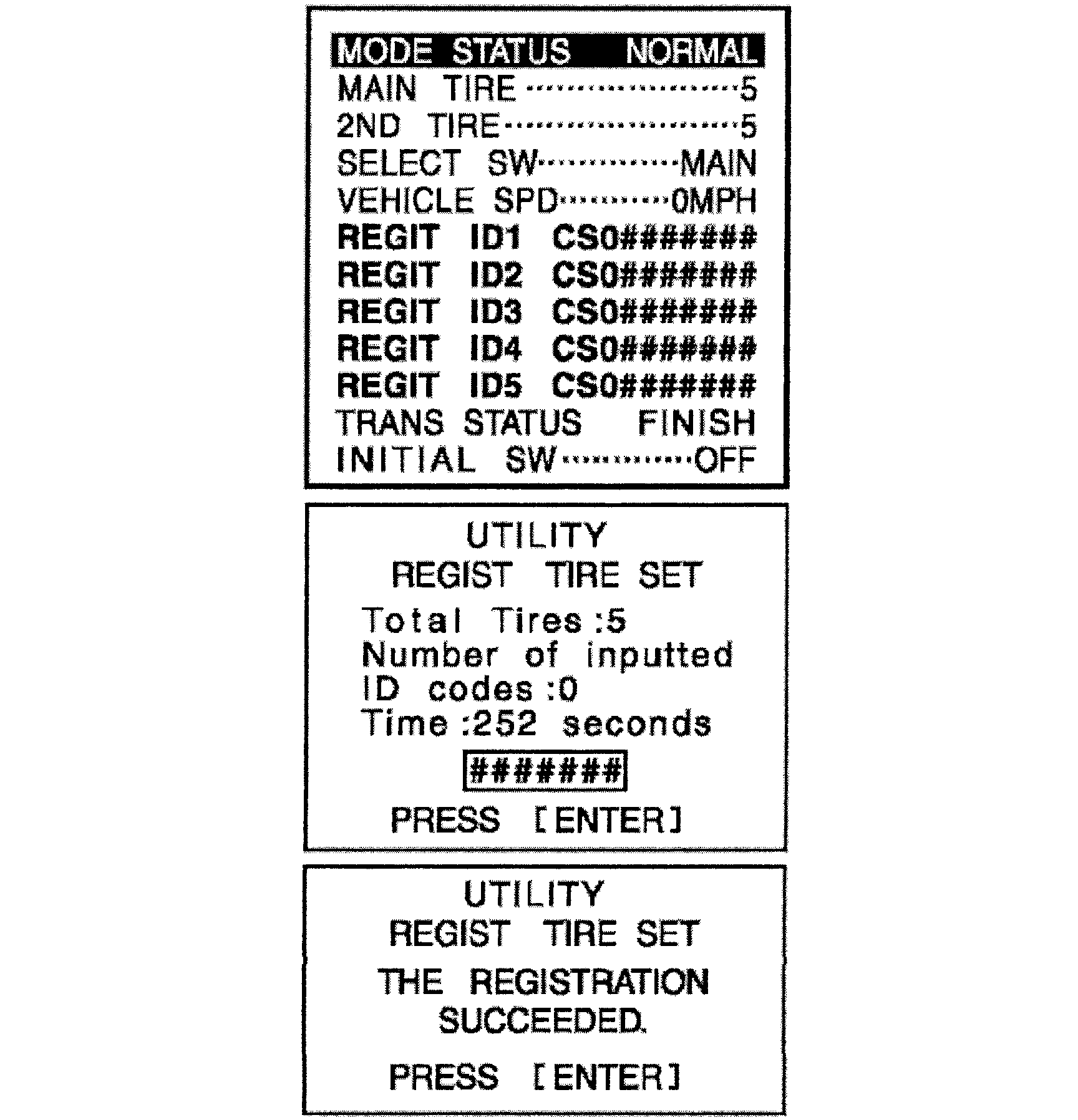

Fig 1: Registering Transmitter ID Using Intelligent Tester (1 Of 2)

Fig 2: Registering Transmitter ID Using Intelligent Tester (2 Of 2)
