Fuel Pump Resistor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP RESISTOR
    1. Install the resistor with the bolt.

      Torque: 12 N*m (122 kgf*cm, 8.8 ft.*lbf)

    2. Connect the resistor connector.

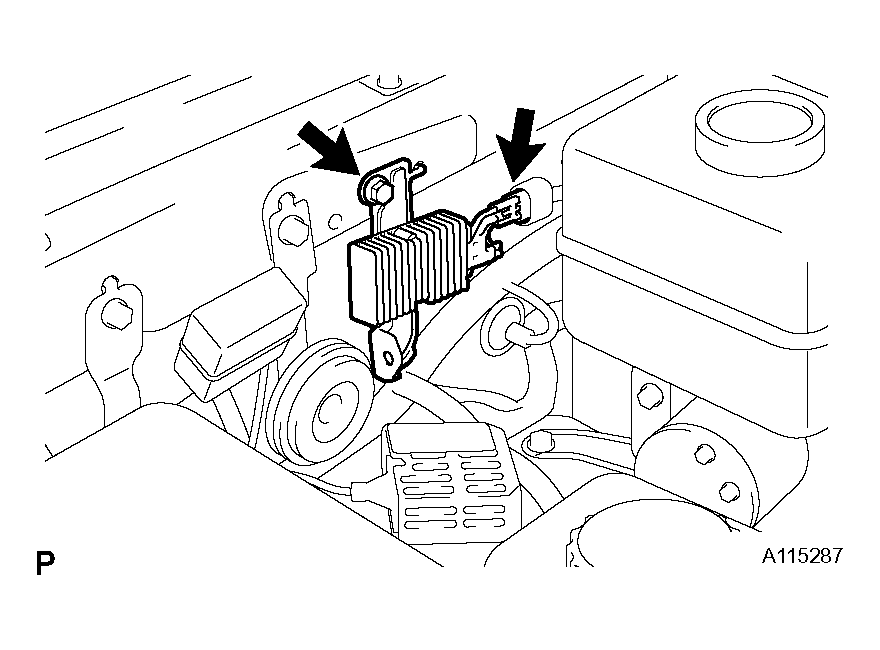

    Fig 1: Installing Fuel Pump Resistor
    G04436049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
