Vacuum Switching Valve: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications (1 Of 2)
G04436147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

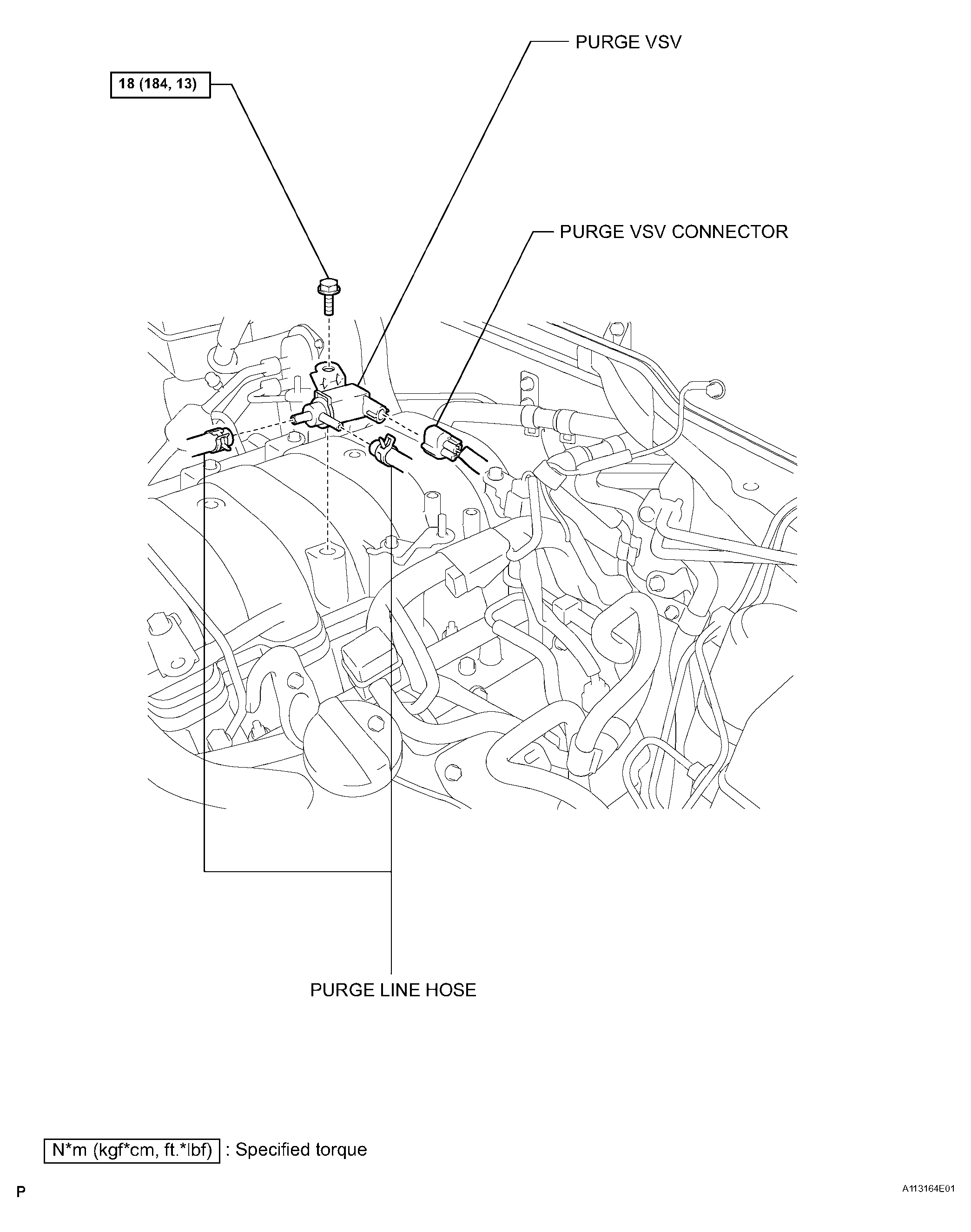

Fig 2: Vacuum Switching Valve Replacement Components With Torque Specifications (2 Of 2)
G04436148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
