Heated Oxygen Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Using SST, install the sensor.
  SST 09224-00010

  Torque: 40 Nm (408 kgf cm, 30 ft. lbf) for use with SST

  44 Nm (449 kgf cm, 32 ft. lbf) for use without SST

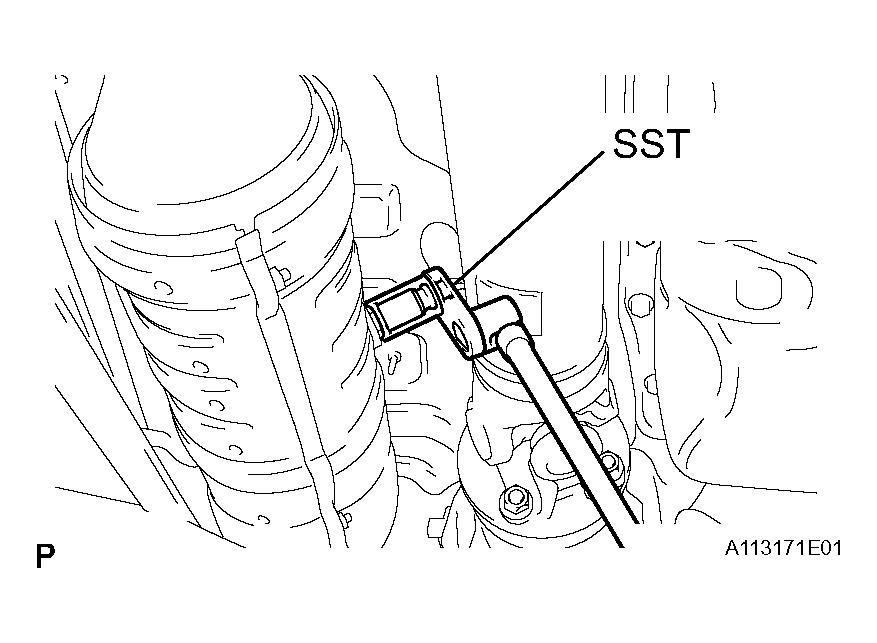

  Fig 1: Installing Heated Oxygen Sensor (Bank 1 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
2. Connect the sensor connector.
INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Using SST, install the sensor.
  SST 09224-00010

  Torque: 40 Nm (408 kgf cm, 30 ft. lbf) for use with SST

  44 Nm (449 kgf cm, 32 ft. lbf) for use without SST

  HINT:

  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

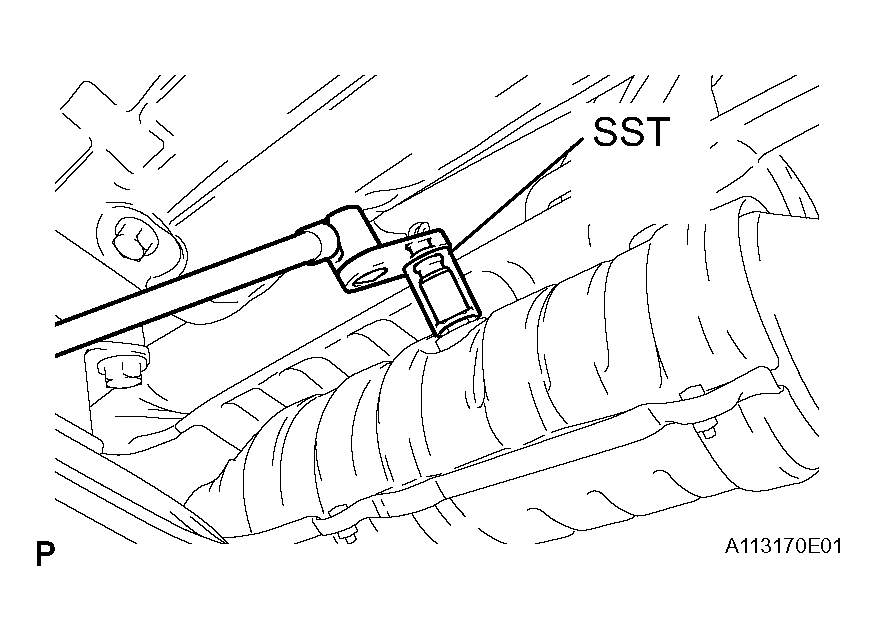

  Fig 2: Install Heated Oxygen Sensor (Bank 2 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
