Section 12 (Emission Control System): Canister: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CANISTER ASSEMBLY
1. Install the canister with the 3 bolts.
  Torque: 14.7 Nm (150 kgf cm, 11 ft. lbf)

  Fig 1: Installing Canister With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 tubes and hose.

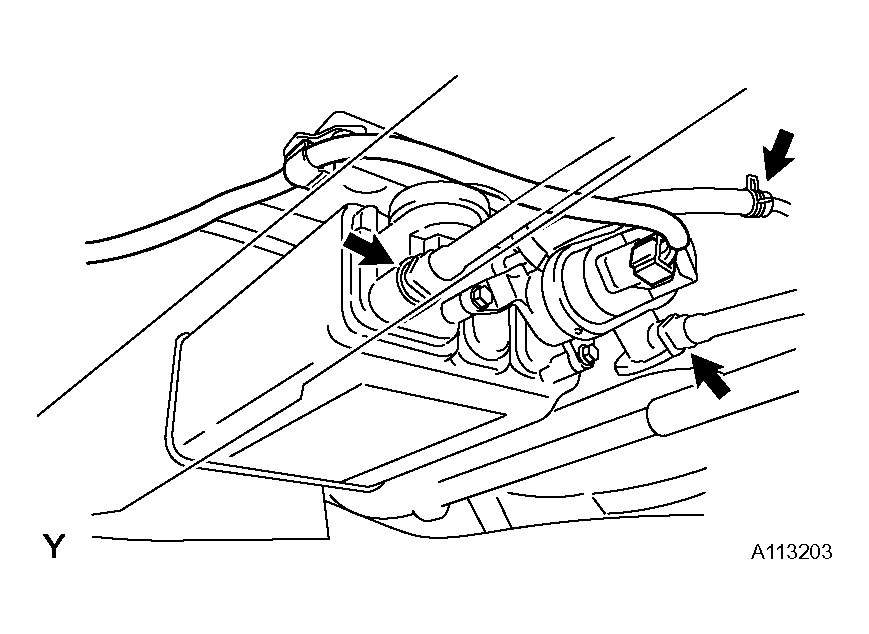

  Fig 2: Connecting Tubes & Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the air inlet line tube to the canister (leak detection pump).
  2. Connect the vent line tube to the canister filter.
  3. Connect the purge line hose.
    HINT:

    Install the hose to the canister, and then attach the retainer.

    Fig 3: Connecting Purge Line Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
4. Secure the wire with the clamp.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

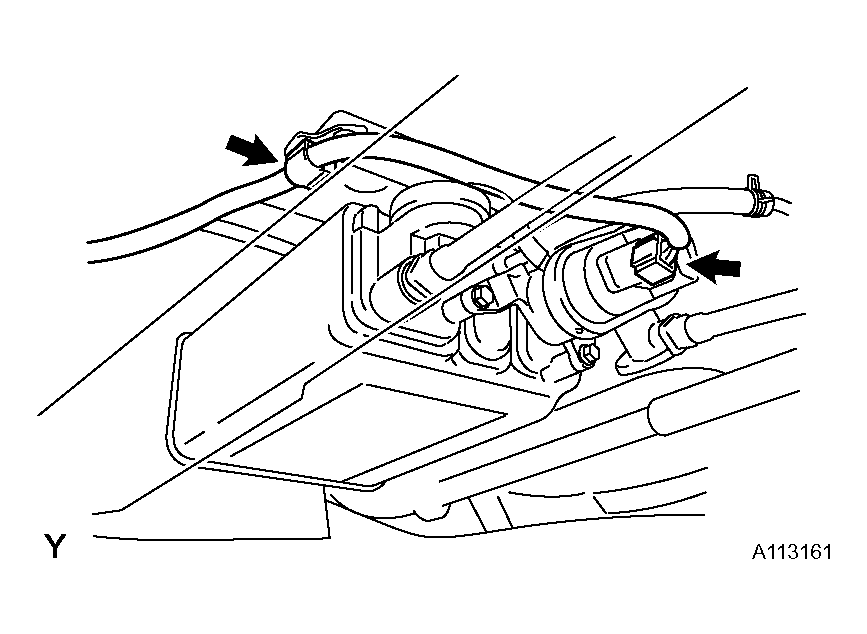

  Fig 4: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
