Rear Cooling Unit: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

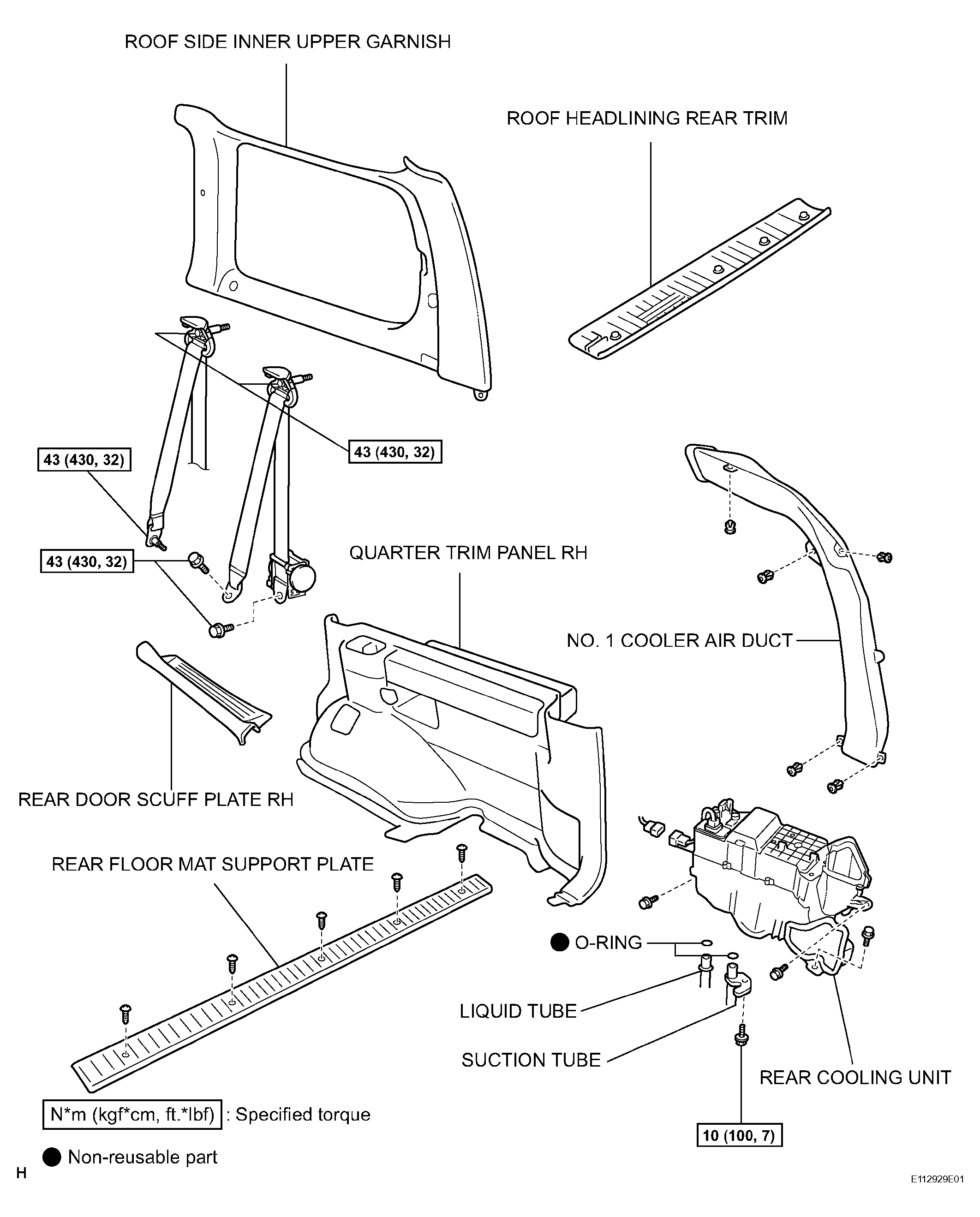

Fig 1: Identifying Rear Cooling Unit Components (1 Of 2)
G04440543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

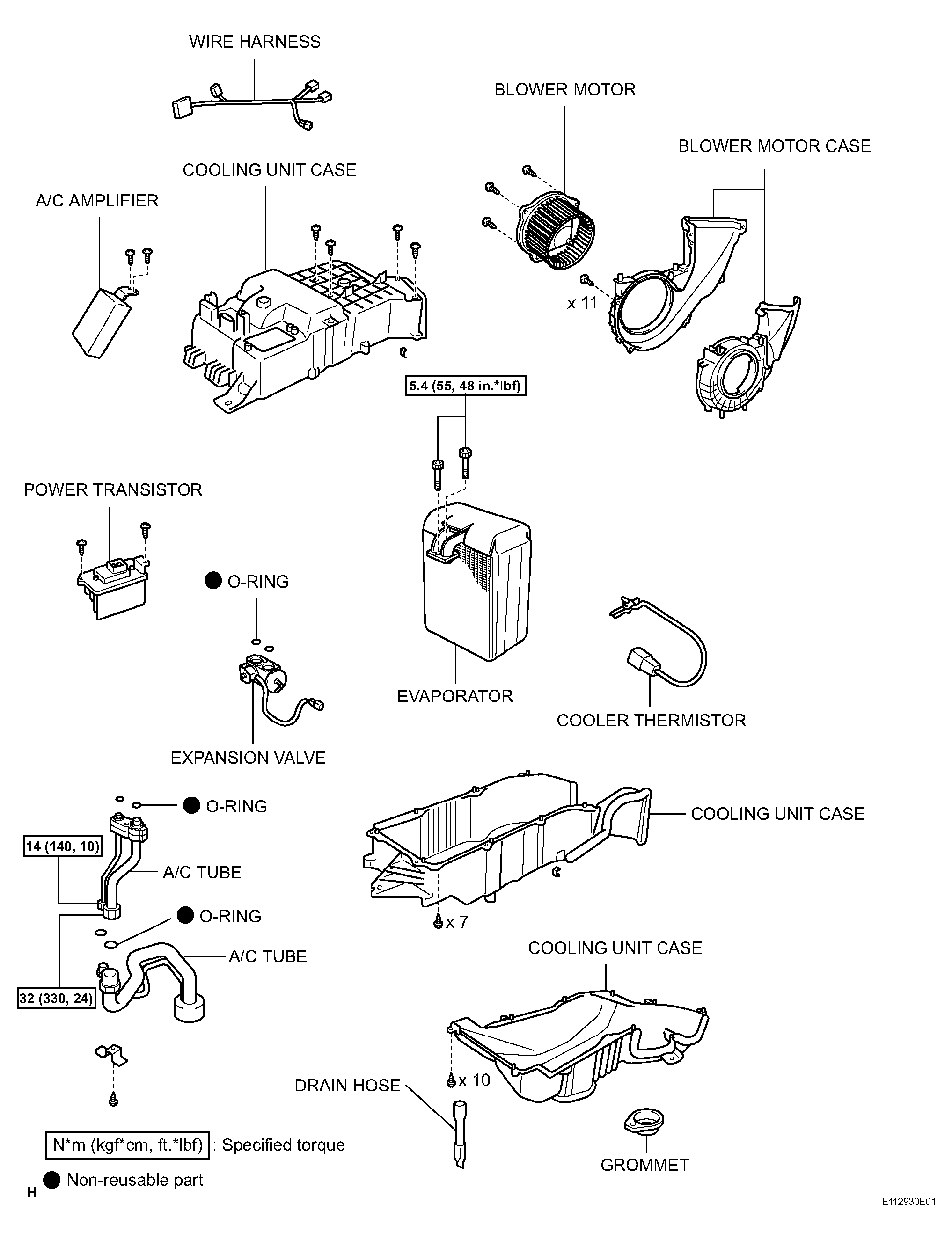

Fig 2: Identifying Rear Cooling Unit Components (2 Of 2)
G04440544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
