Front Cooling Unit: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COOLING UNIT
1. Install the cooling unit with the 4 screws and 2 nuts.
2. Connect the connector.

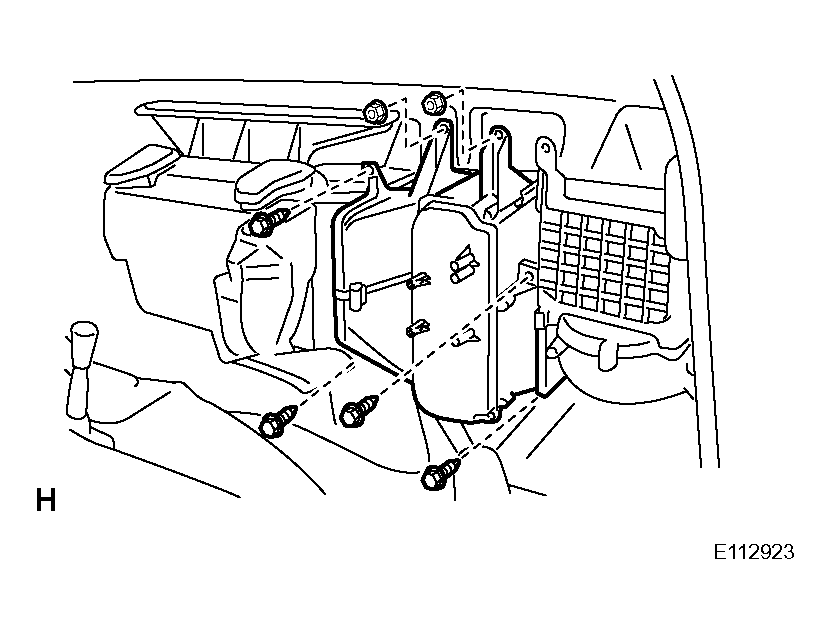

  Fig 1: Installing Cooling Unit Screws & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTENNA RELAY
1. Install the antenna relay with the 2 screws.
2. Connect the connector.
INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY

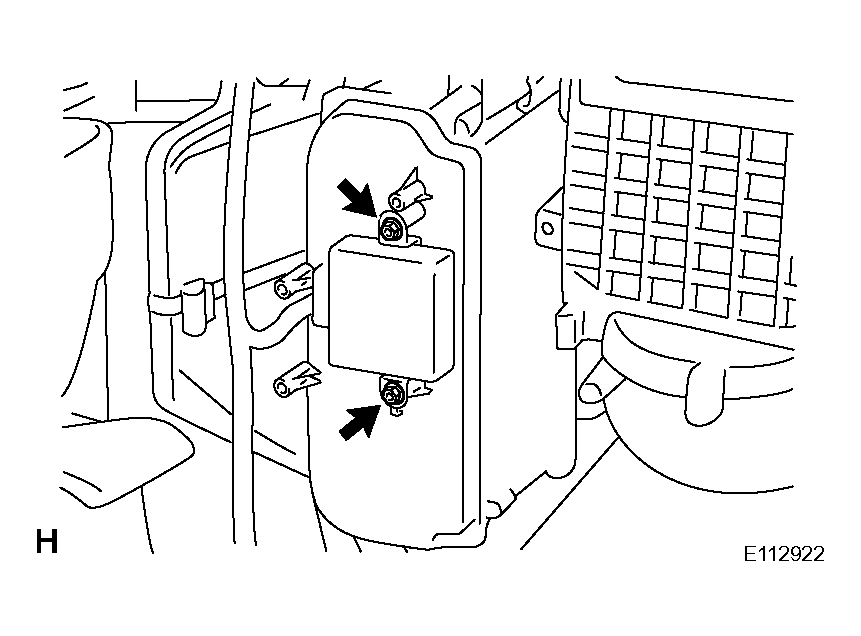

Fig 2: Installing Antenna Relay Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT LIQUID TUBE AND SUCTION TUBE
1. Lubricate 4 new O-rings with compressor oil and install them to the tubes.
  Compressor oil: ND-OIL 8 or equivalent
2. Connect the liquid tube, suction tubes and piping clamp.
  HINT:

  After connection, check the claw engagement of the piping clamp.

  Fig 3: Connecting Liquid Tube & Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see TERMINALS OF ECU ).
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE (See REPLACEMENT )
CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
