Section 10 (Starting System): Starter: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STARTER YOKE ASSEMBLY
1. Remove the nut and disconnect the lead wire from terminal C.
2. Remove the 2 through bolts.
3. Pull out the starter yoke with the armature.
4. Remove the O-ring from the starter yoke.

  Fig 1: Removing Starter Yoke Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STARTER BRUSH HOLDER ASSEMBLY
1. Remove the 2 screws, 2 O-rings and end cover from the field frame.
2. Remove the O-ring from the field frame.

  Fig 2: Removing O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 2 starter yoke brushes from the brush holder.

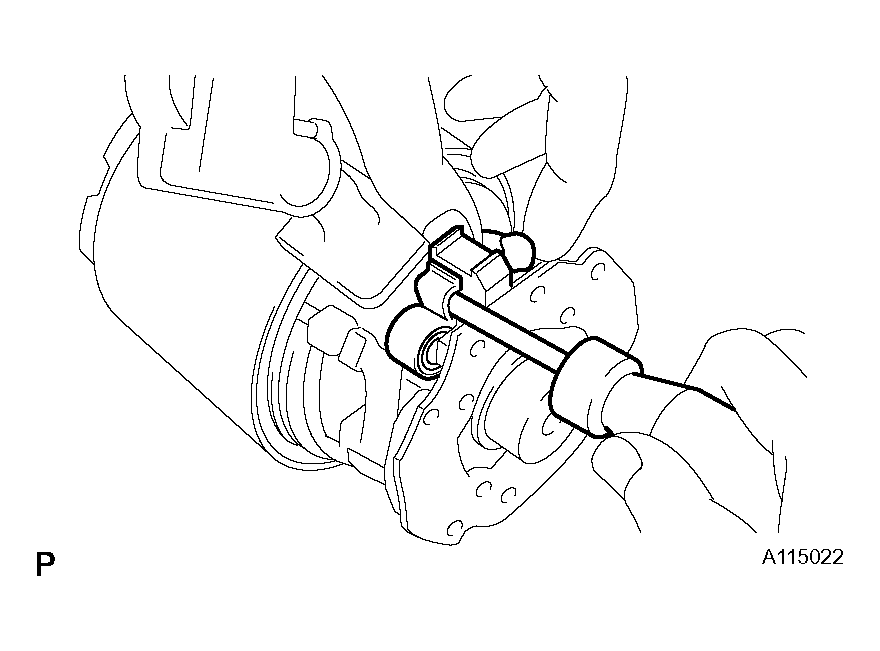

  1. Using a screwdriver, pull back the spring.
  2. Disconnect the brush from the brush holder.
  Fig 3: Pulling Back Spring Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the brush holder from the starter yoke.
REMOVE STARTER ARMATURE ASSEMBLY
1. Remove the starter armature from the starter yoke.
REMOVE STARTER CLUTCH SUB-ASSEMBLY

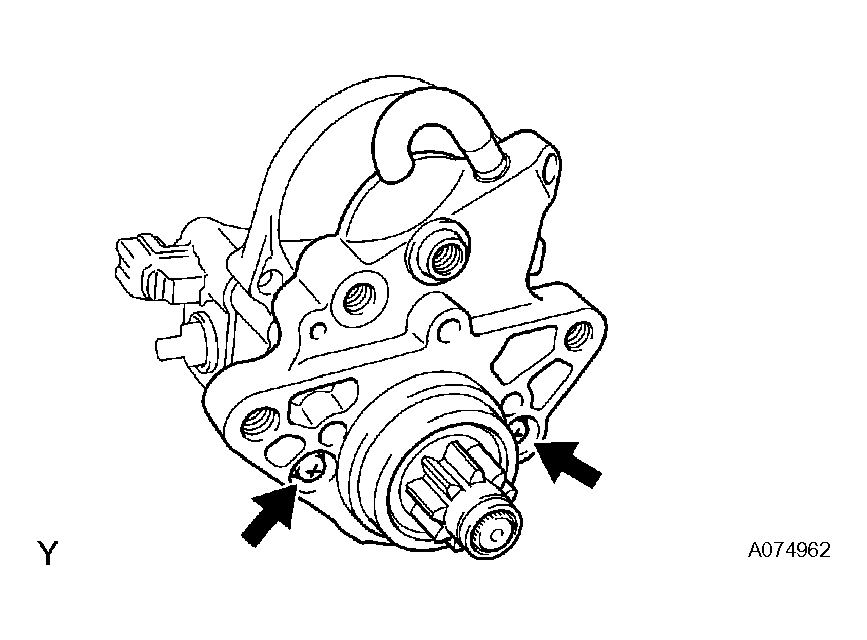

1. Remove the 2 screws and starter housing.

  Fig 4: Removing Starter Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

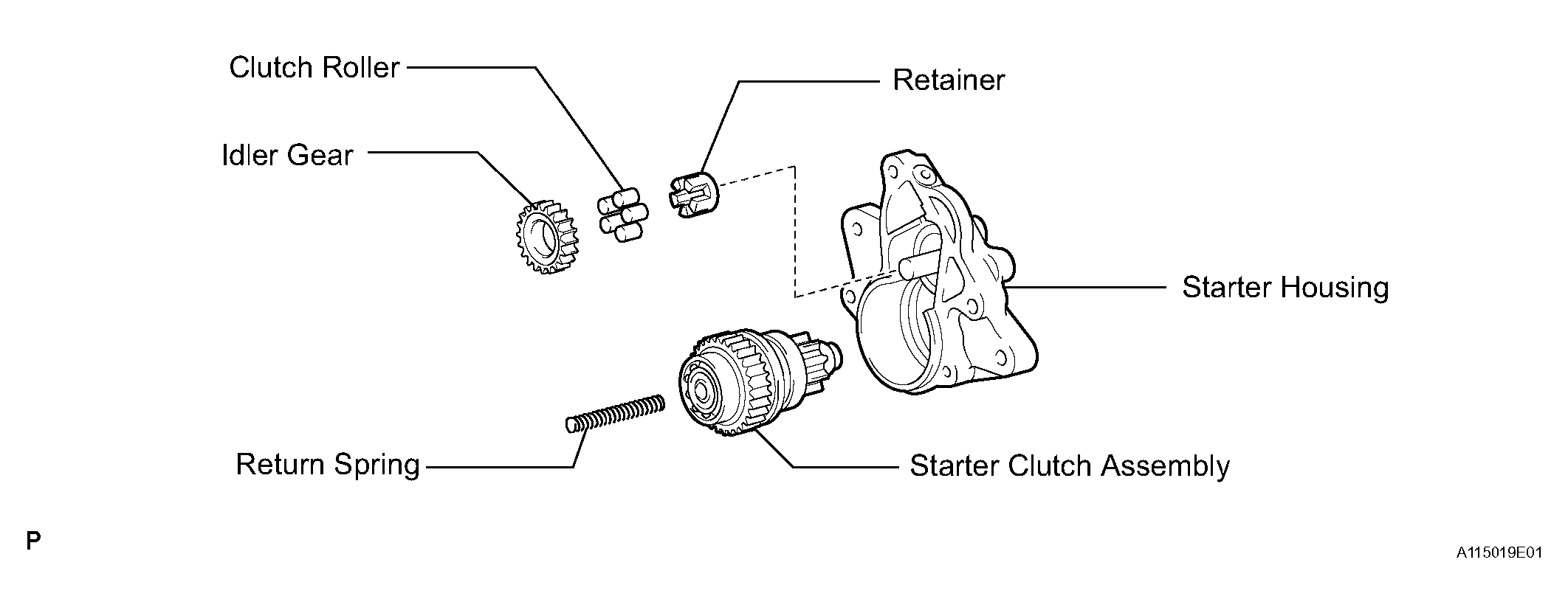

2. Remove the return spring, idler gear, clutch roller, retainer and starter clutch from the starter housing.

  Fig 5: Removing Return Spring, Idler Gear & Clutch Roller
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a magnetic finger, remove the steel ball from the clutch shaft hole.

  Fig 6: Removing Steel Ball From Clutch Shaft Hole Using Magnetic Finger
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
