Oil Pump: Reassembly

INSTALL OIL PUMP ROTOR SET
1. Place the drive and driven rotors into the pump body with the marks facing the pump body cover side.

  Fig 1: Placing Drive & Driven Rotors Into Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 10 screws.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

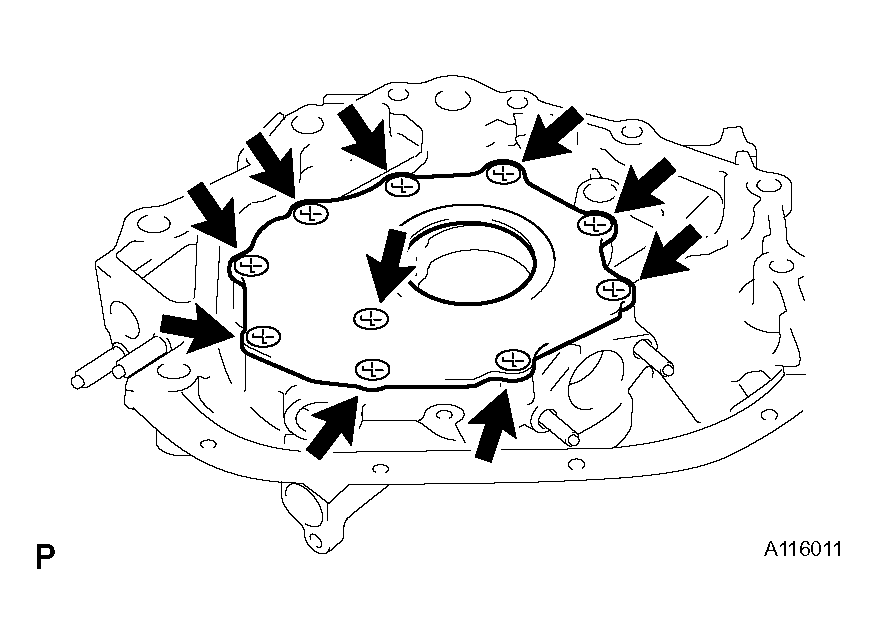

  Fig 2: Installing Pump Body Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP RELIEF VALVE
1. Insert the relief valve and compression spring into the oil pump body hole.
2. Install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  Fig 3: Installing Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
