Oil Pump: Disassembly

  1. REMOVE OIL PUMP RELIEF VALVE
    1. Remove the plug, compression spring and relief valve.
      Fig 1: Removing Oil Pump Relief Valve
      G04436309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL PUMP ROTOR SET
    1. Remove the 10 screws, pump body cover and the drive and driven rotors.

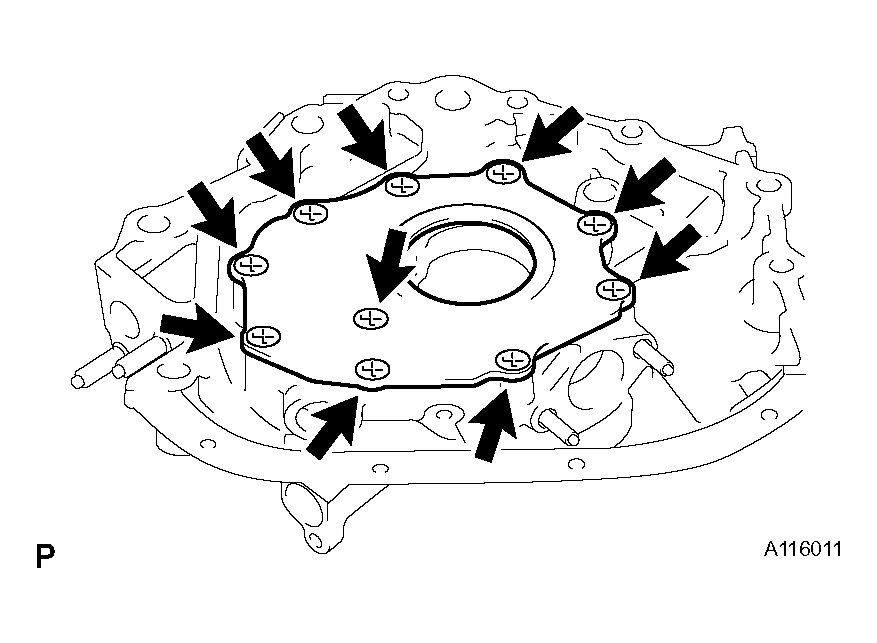

      Fig 2: Removing Oil Pump Rotor Set
      G04436310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
