Air Pump: Reassembly

  1. INSTALL AIR SWITCHING VALVE
    1. Install the No. 1 air hose to the air switching valve and air pump.
    2. Install the air switching valve to the air pump bracket with the 2 bolts.

      Torque: 16 Nm (163 kgf cm, 12 ft. lbf)

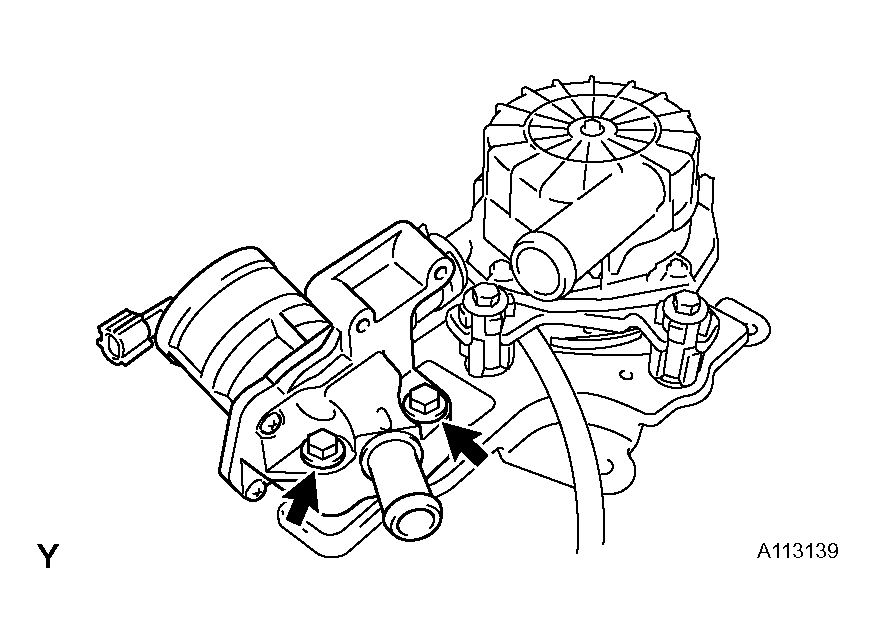

      Fig 1: Installing Air Switching Valve To Air Pump Bracket With Bolts
      G04436126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PRESSURE SENSOR
    1. Install the pressure sensor to the air switching valve with the 2 bolts.

      Torque: 5.0 Nm (55 kgf cm, 48 in. lbf)

    2. Install the vacuum hose to the pressure sensor and air switching valve.
      Fig 2: Installing Pressure Sensor To Air Switching Valve With Bolts
      G04436127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
