Fuel Sender Gauge Assembly: Components

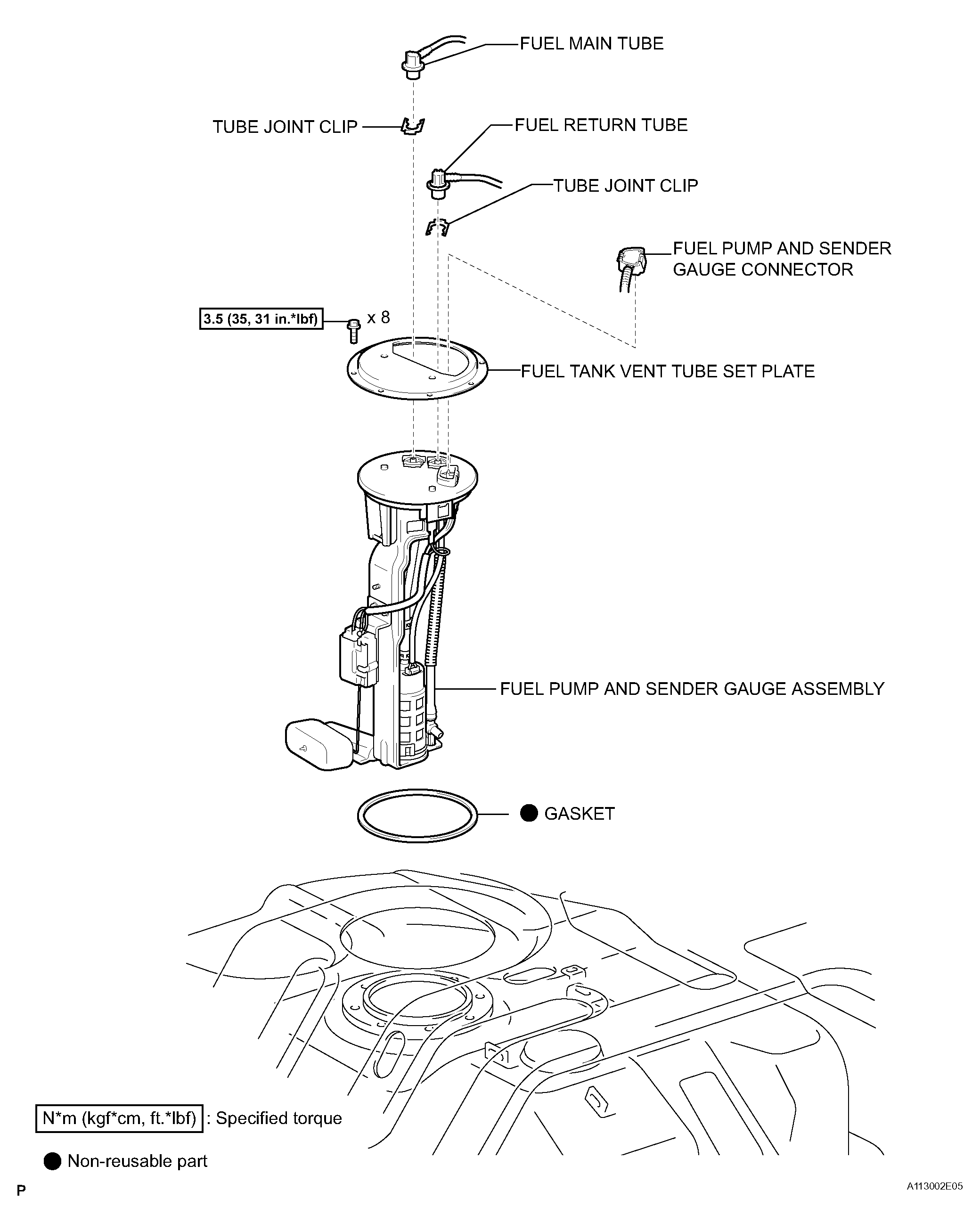

Fig 1: Identifying Fuel Sender Gauge Assembly Components

G04440697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
