Instrument Panel Safety Pad: Components

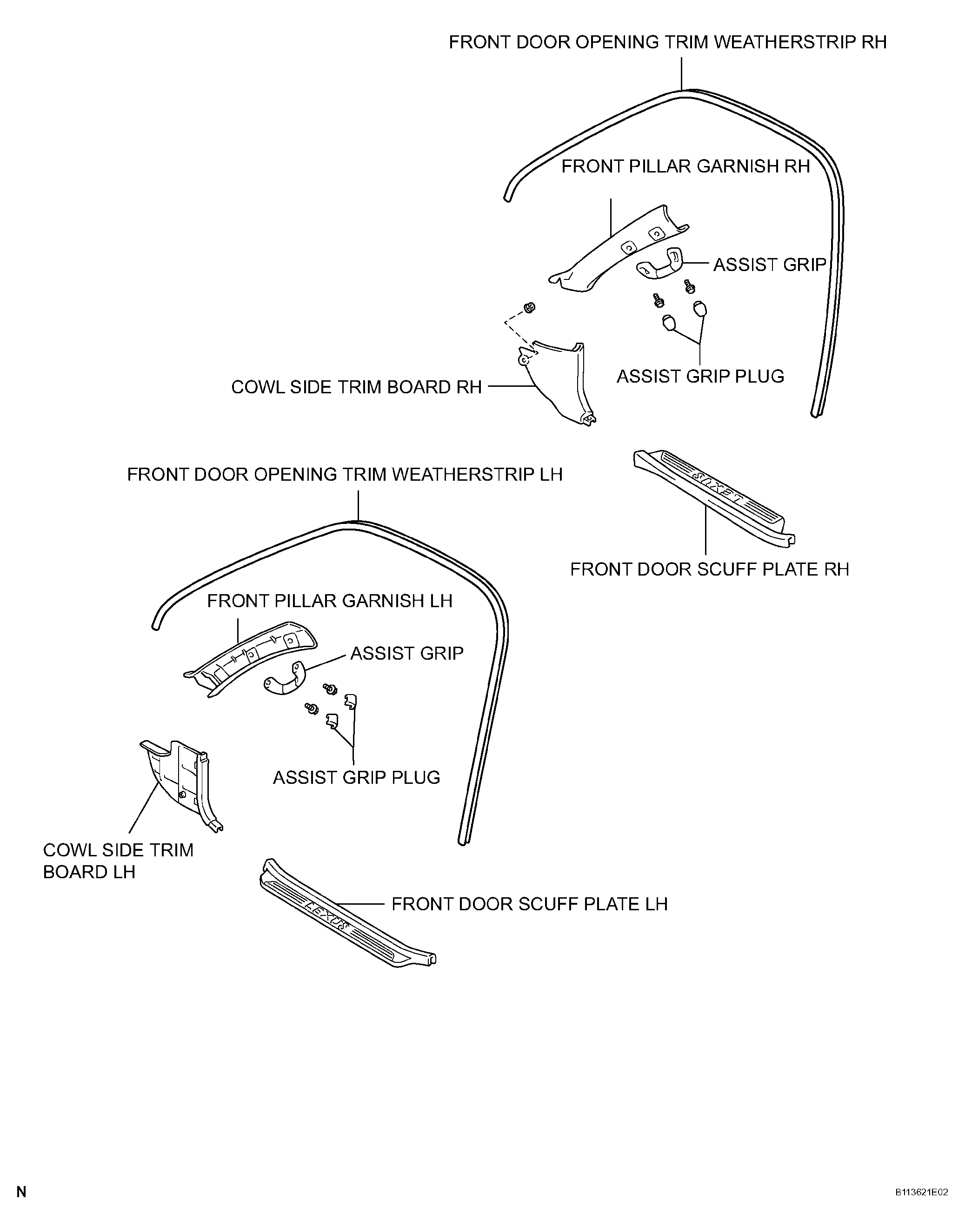

Fig 1: Identifying Instrument Panel Safety Pad Components And Replacements (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

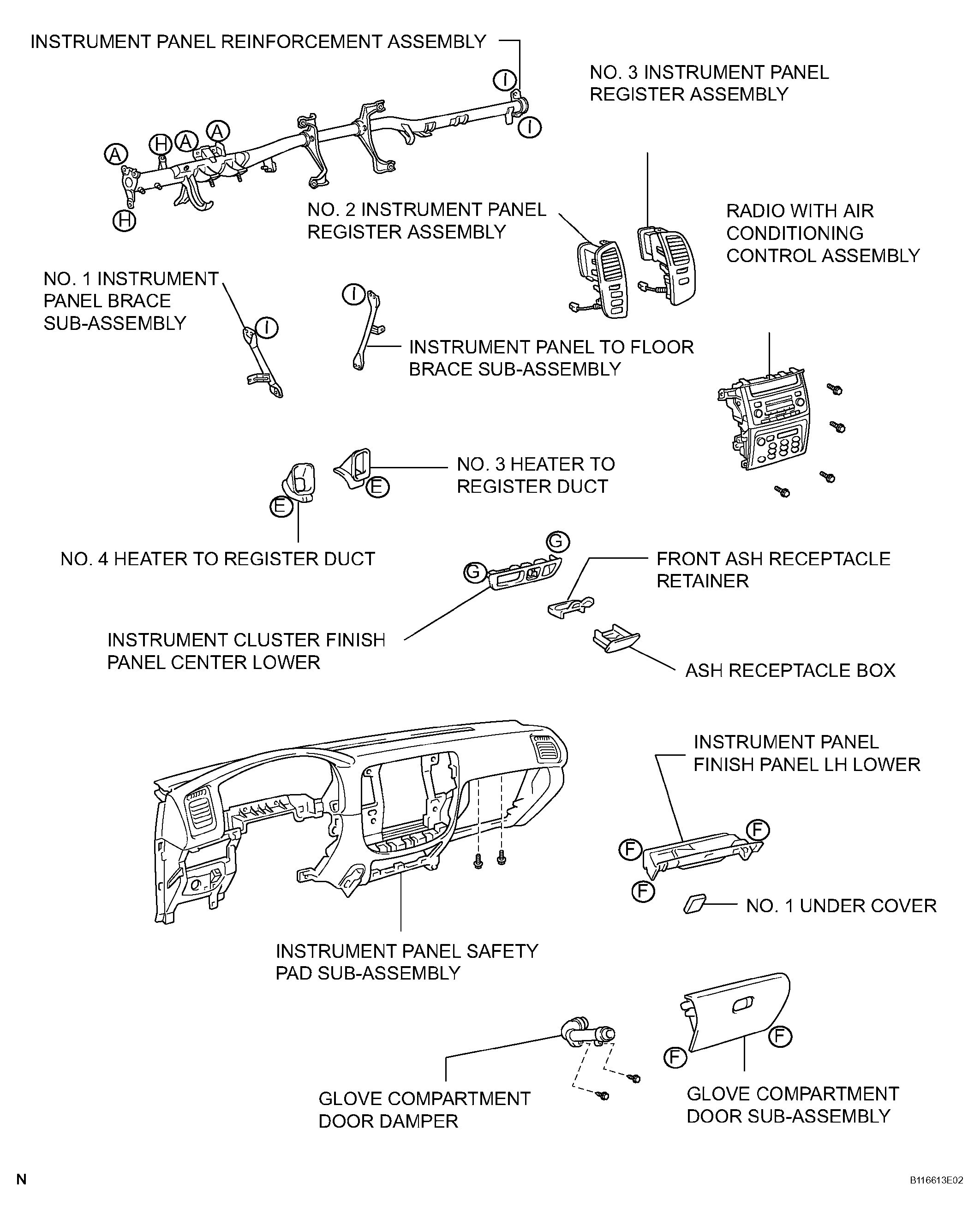

Fig 2: Identifying Instrument Panel Safety Pad Components And Replacements (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

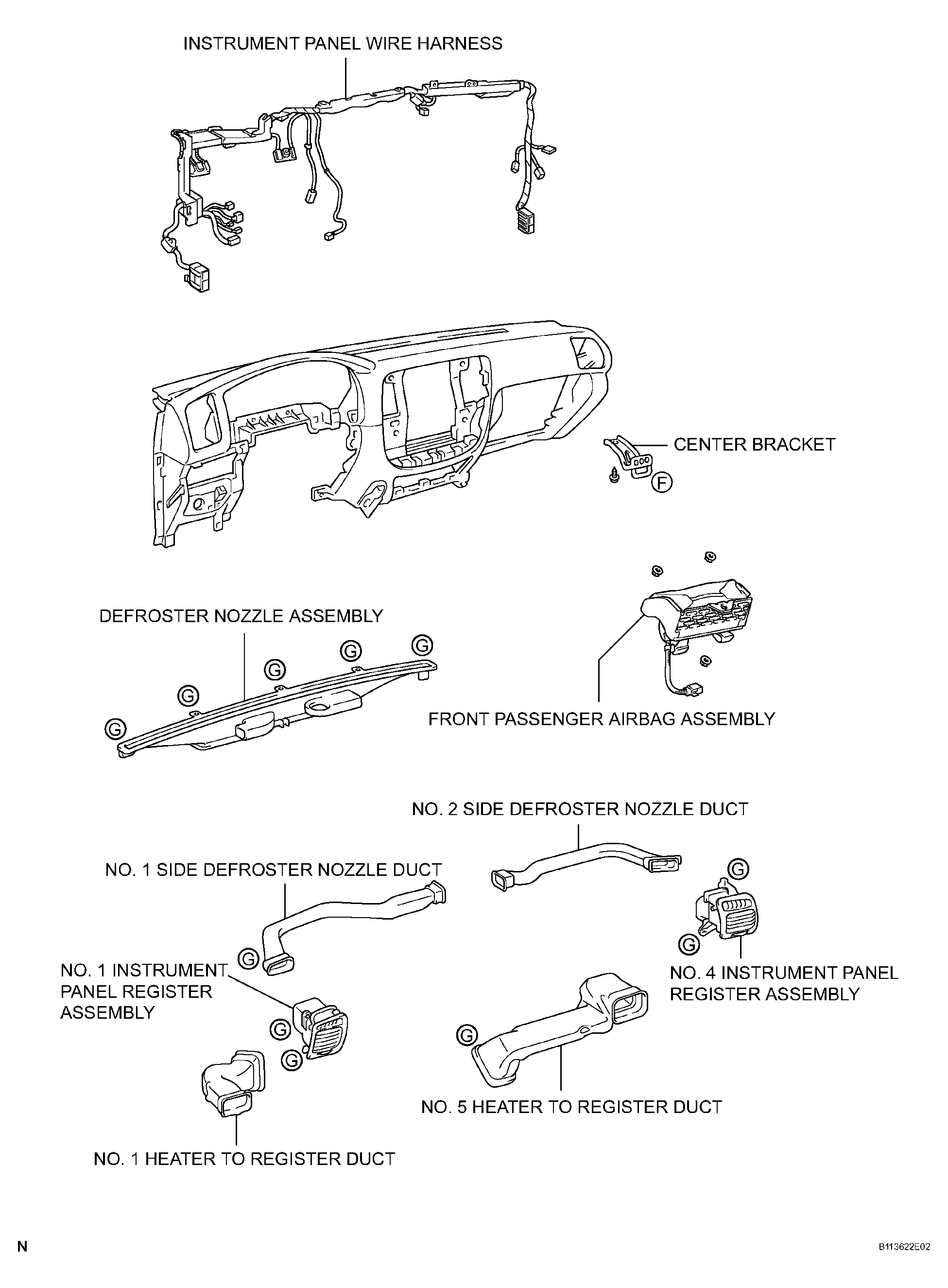

Fig 3: Identifying Instrument Panel Safety Pad Components And Replacements (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

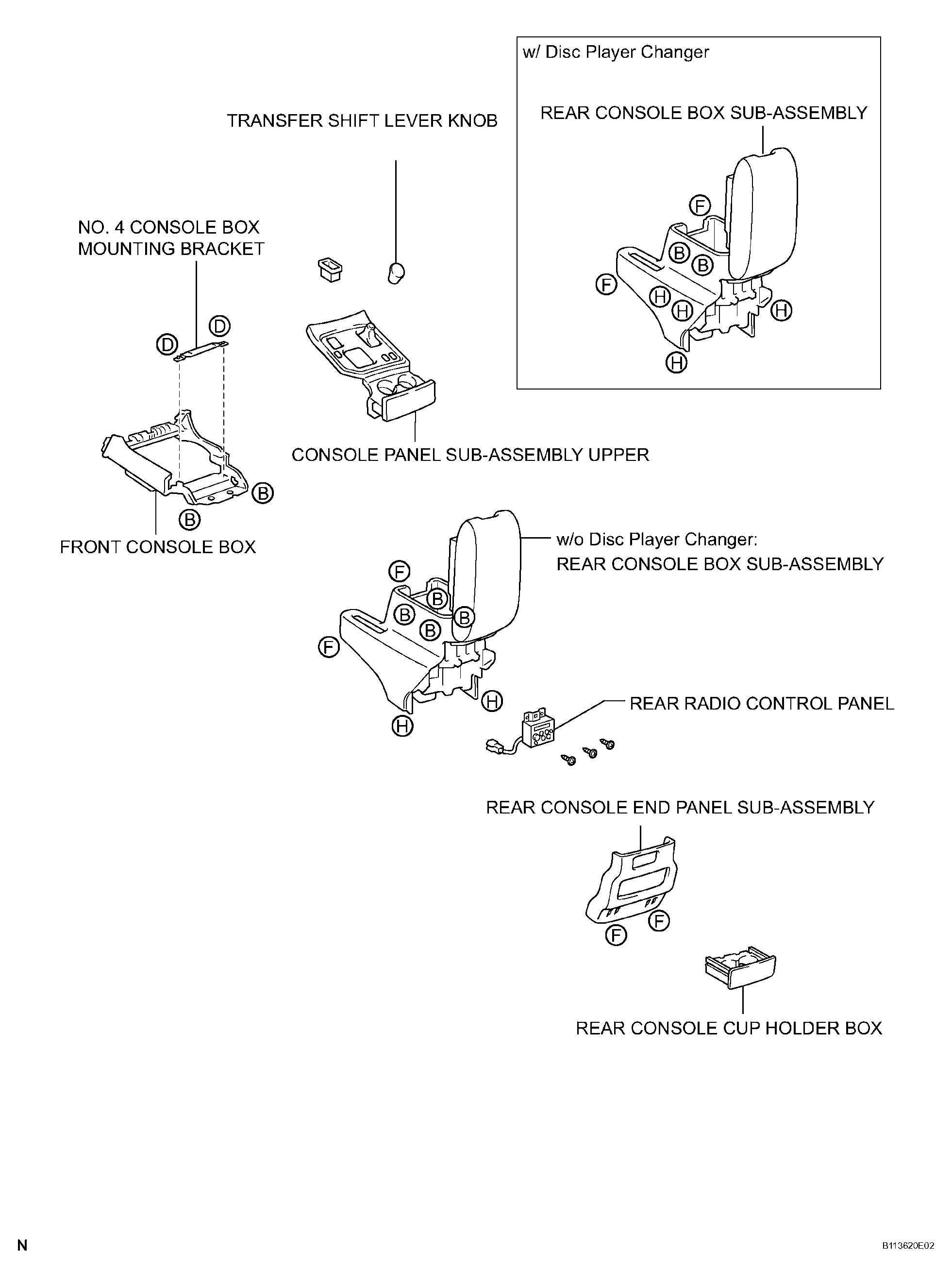

Fig 4: Identifying Instrument Panel Safety Pad Components And Replacements (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

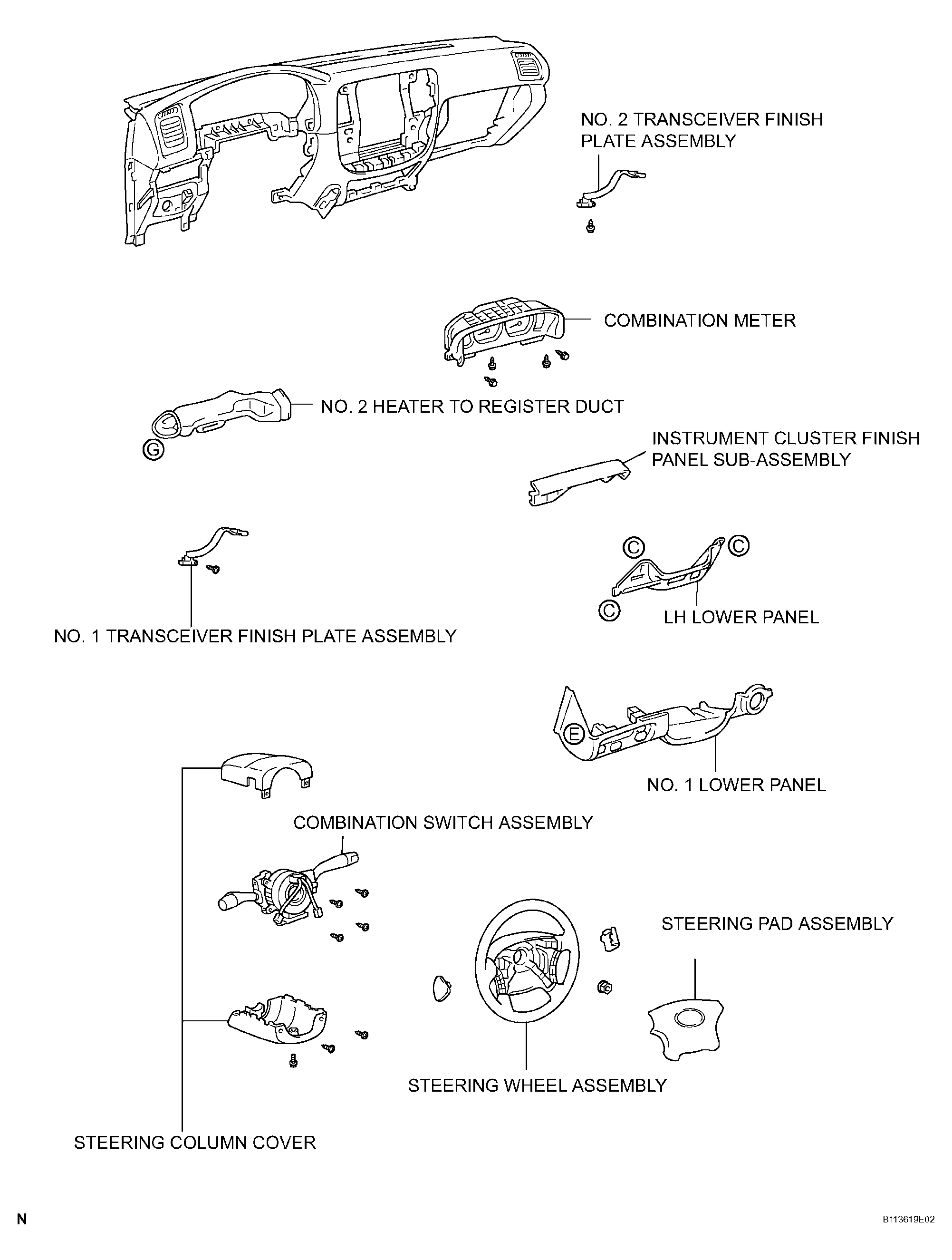

Fig 5: Identifying Instrument Panel Safety Pad Components And Replacements (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

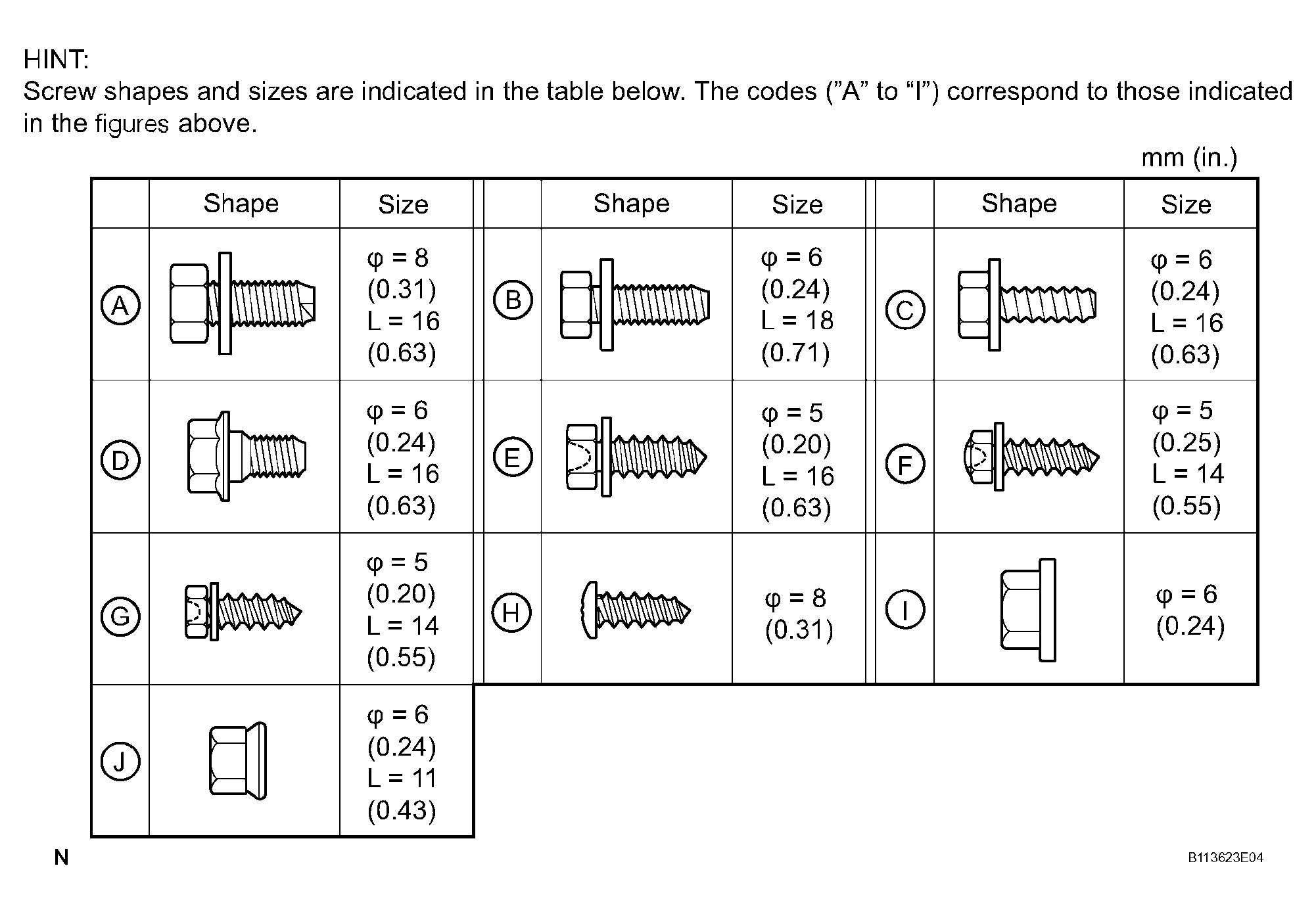

Fig 6: Identifying Instrument Panel Safety Pad Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
