Seat Heater: Notes

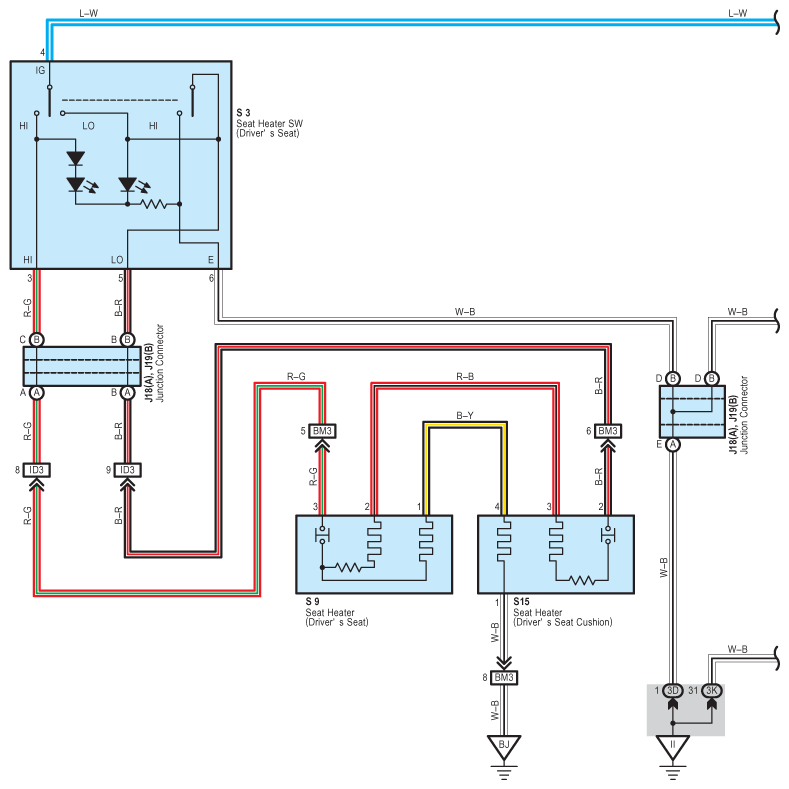

Fig 1: Seat Heater System Wiring Diagram (1 Of 2)
G08783464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

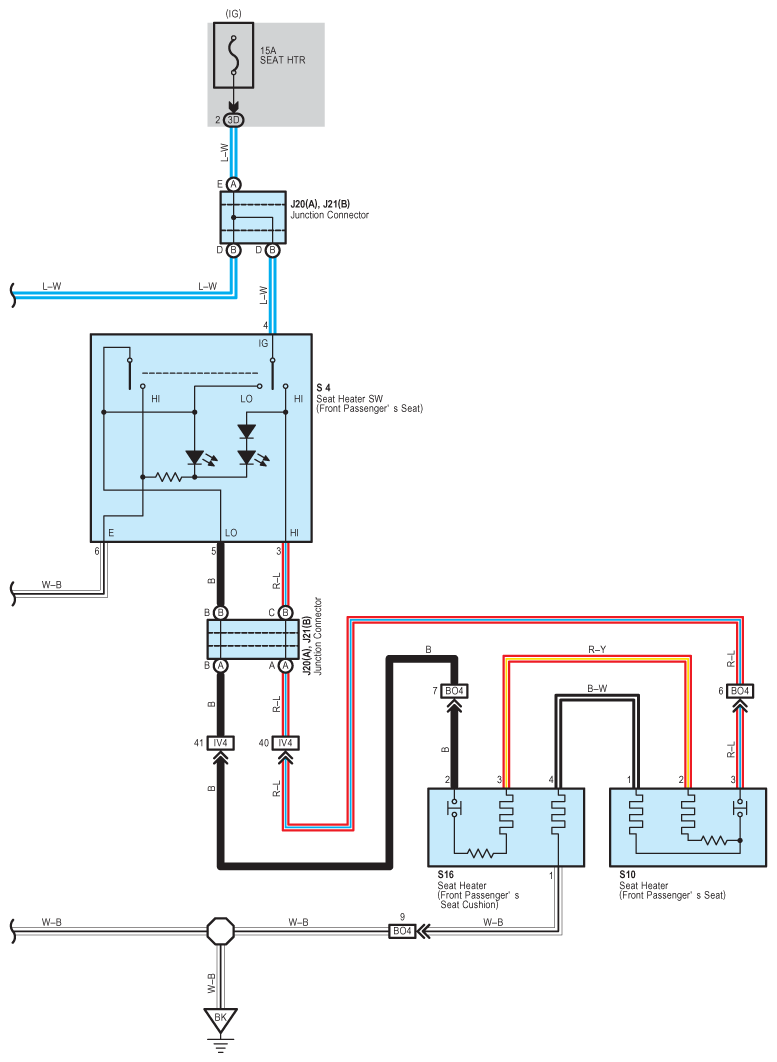

Fig 2: Seat Heater System Wiring Diagram (2 Of 2)
G08783465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
