Rear Power Window Motor RH Circuit: Wiring Diagram

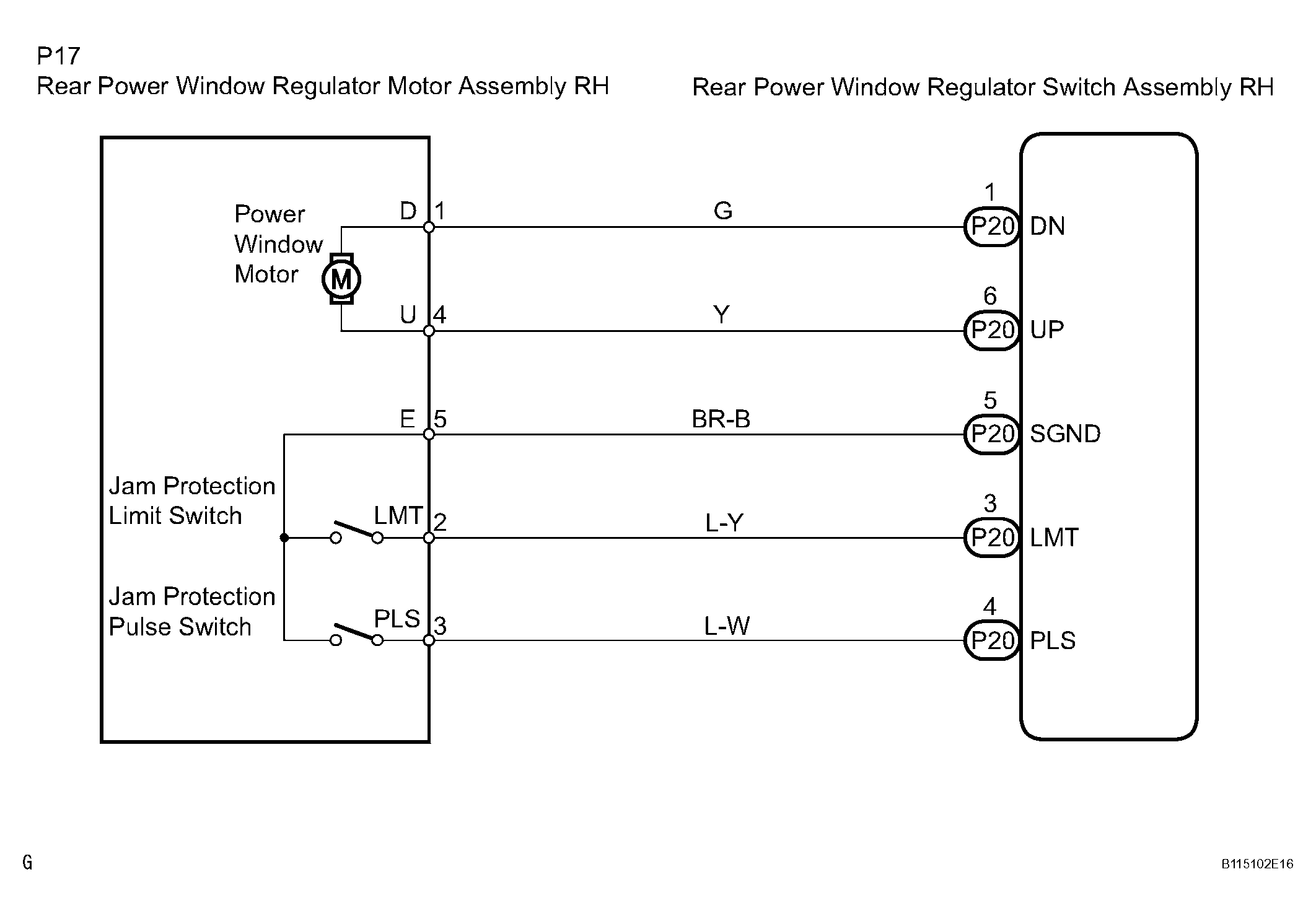

Fig 1: Rear Power Window Motor RH Circuit Wiring Diagram

G04443749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
