Rear Power Window Motor LH Circuit: Wiring Diagram

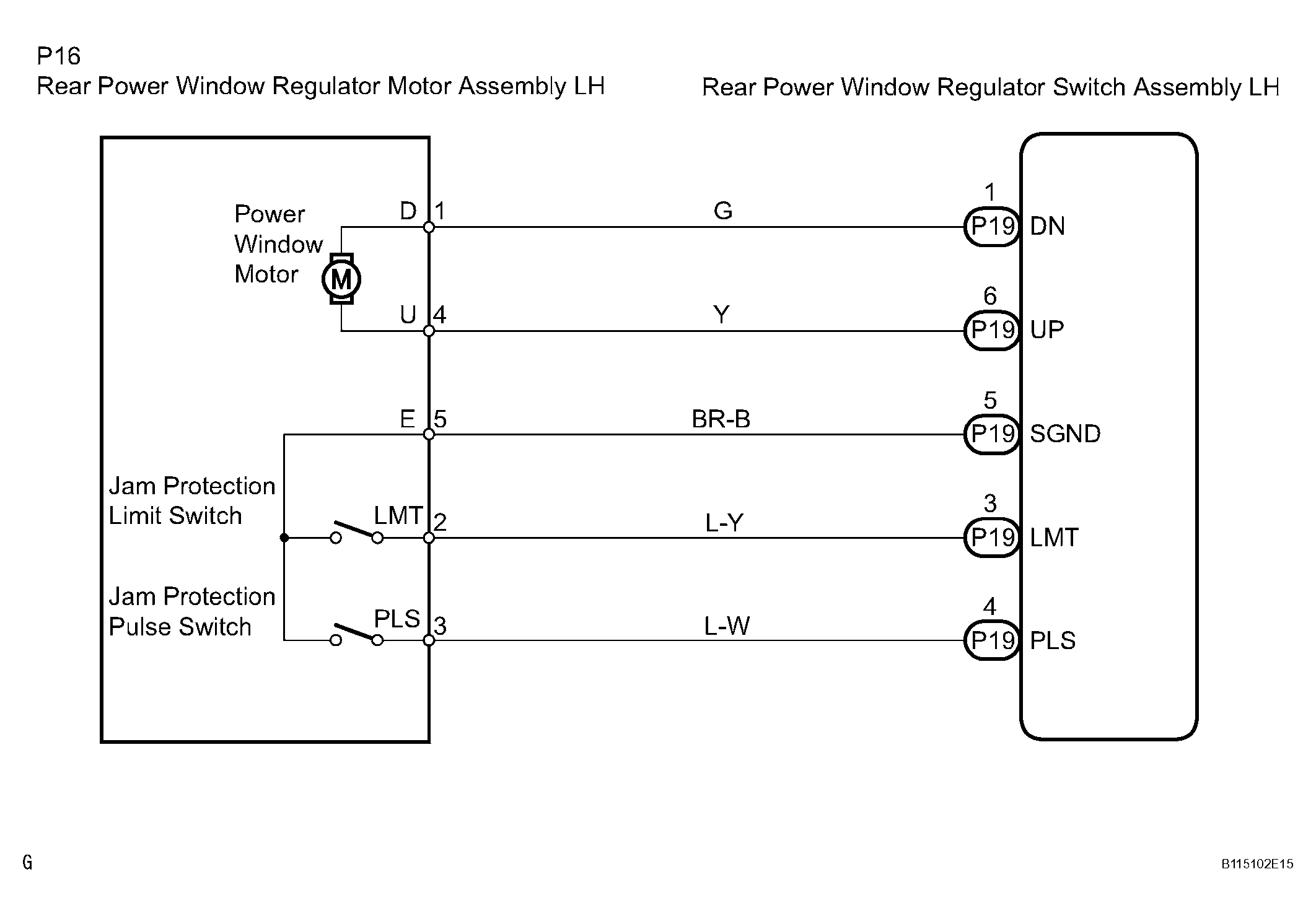

Fig 1: Rear Power Window Motor LH Circuit Wiring Diagram

G04443748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
