Outer Rear View Mirror: Installation

  1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
    1. Install the mirror with the 3 bolts.

      Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)

    2. Connect the 2 connectors.

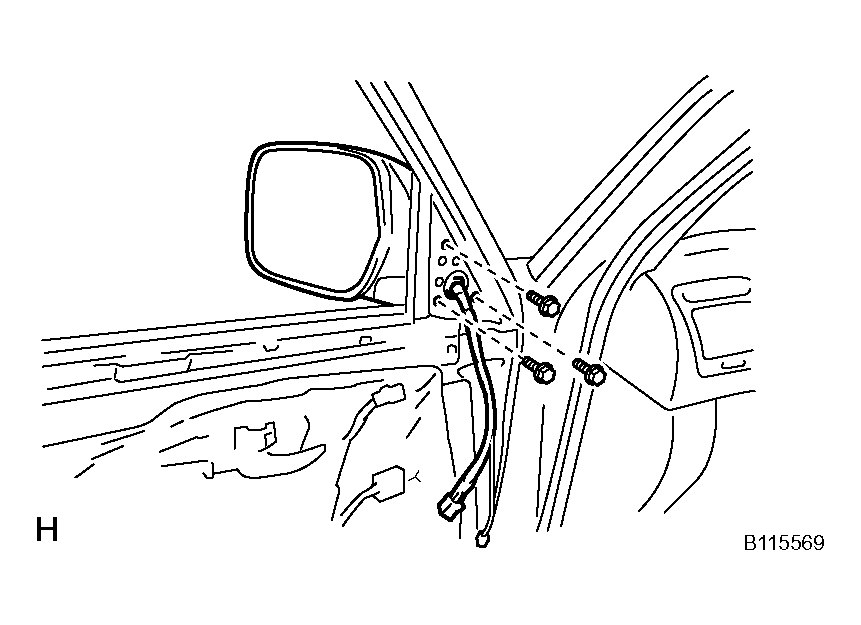

      Fig 1: Installing Mirror
      G04438752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TWEETER SPEAKER
    1. Install the speaker with the screw.
    2. Connect the connector.

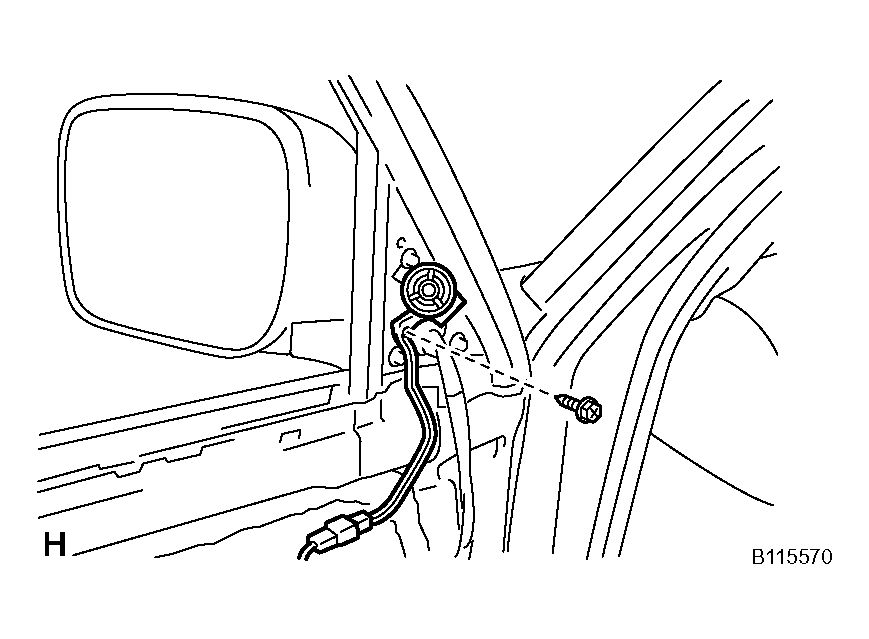

      Fig 2: Installing Speaker
      G04438753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    1. Attach the trim board.
    2. Install the 3 clips.
    3. Install the 7 screws and 2 caps.

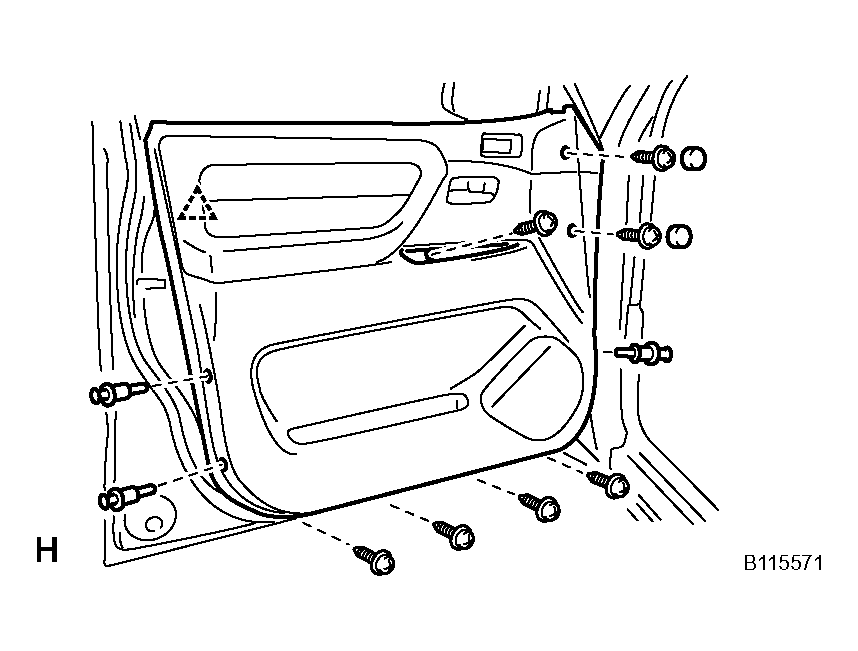

    Fig 3: Installing Front Door Trim Board Sub-Assembly
    G04438754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT DOOR COURTESY LIGHT
    1. Connect the connector.
    2. Install the light.
  5. INSTALL NO. 1 DOOR INSIDE HANDLE BEZEL
    1. Install the bezel with the screw.
  6. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL
  7. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Connect the connector.
    2. Install the switch.
  8. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
    Fig 4: Installing Front Door Lower Frame Bracket Garnish
    G04438755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  10. PERFORM INITIALIZATION
    1. Perform INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
