Unlock Warning Switch: Inspection

  1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY
    1. Measure the resistance of the switch.

      Standard resistance

      UNLOCK WARNING SWITCH

      Tester Connection Condition Specified Condition
      1 - 2 Pushed Below 1 Ω
      Not pushed 10 kΩ or higher

      If the result is not as specified, replace the switch.

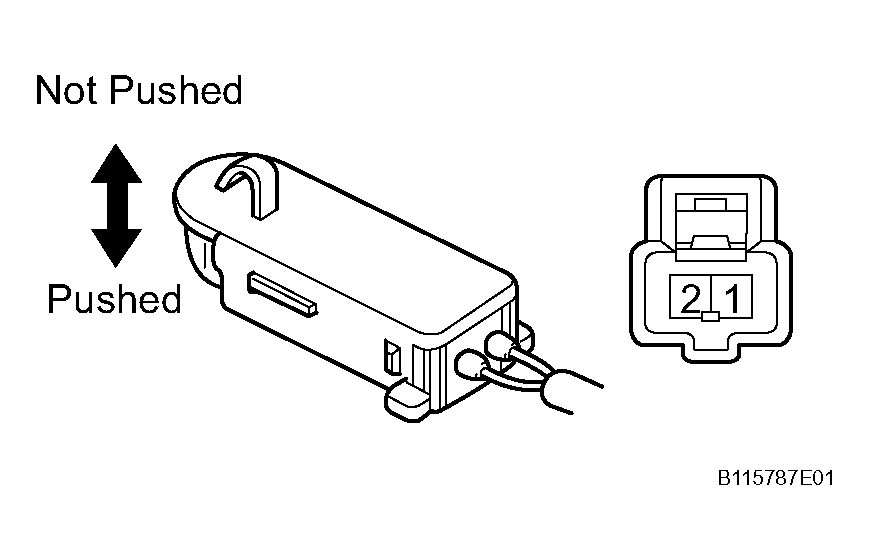

      Fig 1: Inspecting Unlock Warning Switch Assembly
      G04438467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
