Multi-Display without Navigation System: Notes

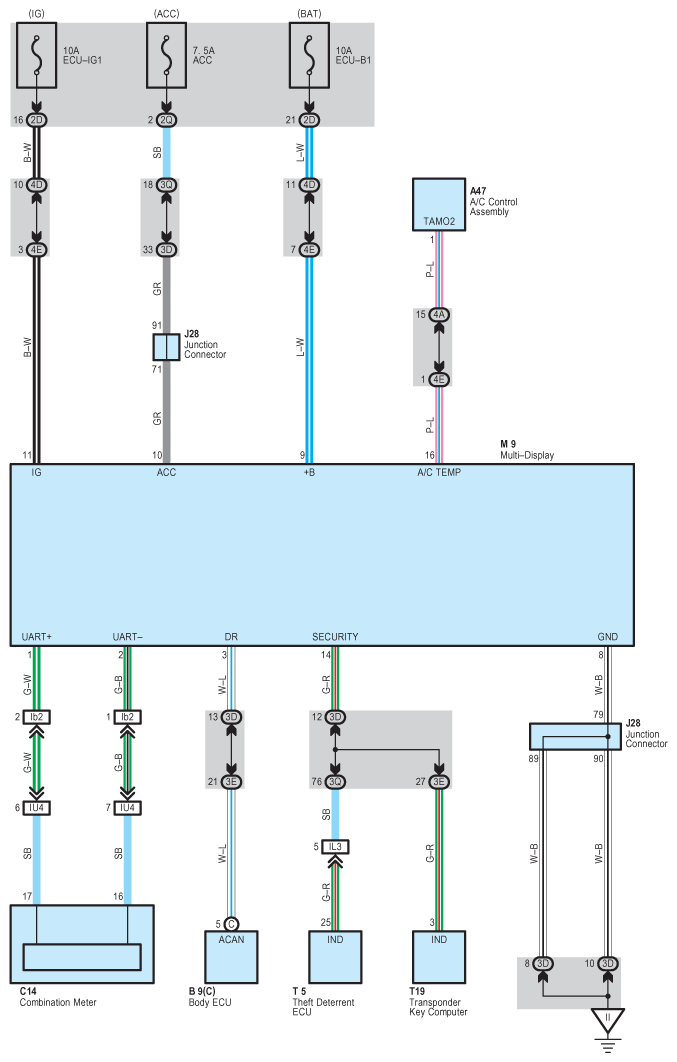

Fig 1: Multi-Display System (Without Navigation System) Wiring Diagram

G08783491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
