Throttle Body: Components

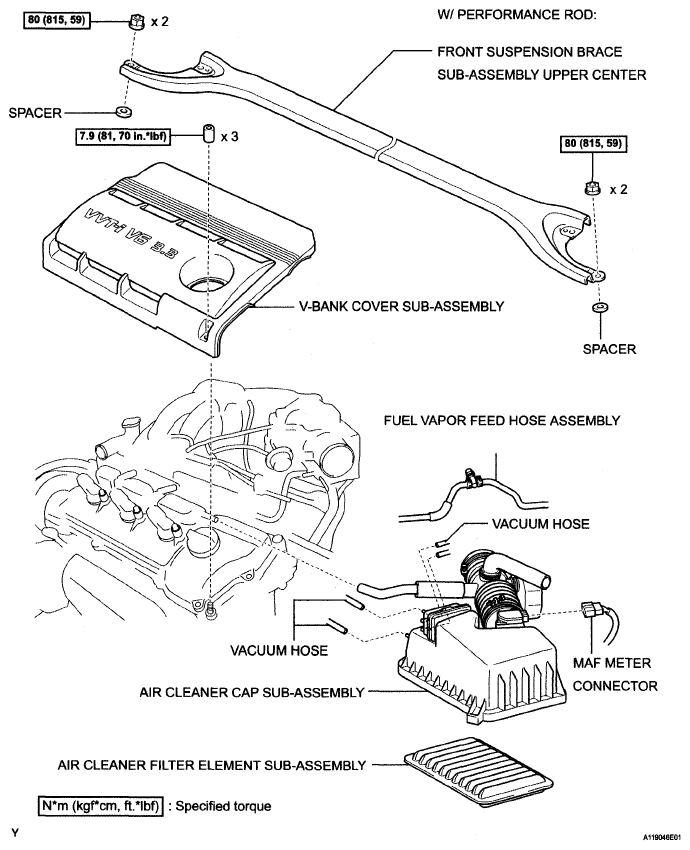

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G05245798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

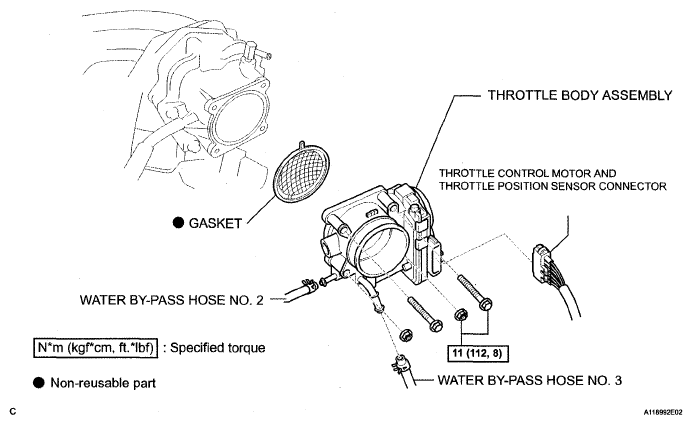

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G05245799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
