System Diagram

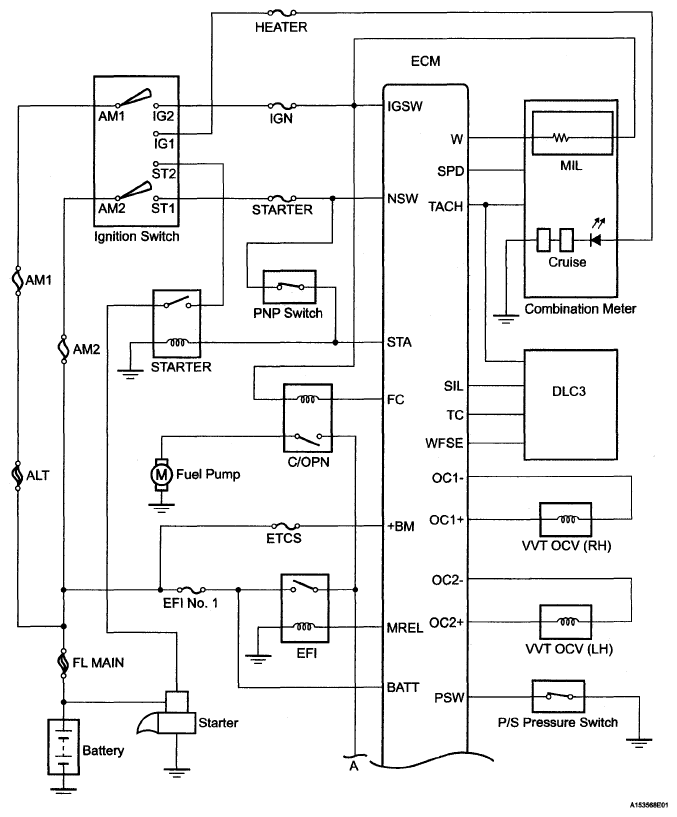

Fig 1: SFI System Diagram (1 Of 4)
G05245526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

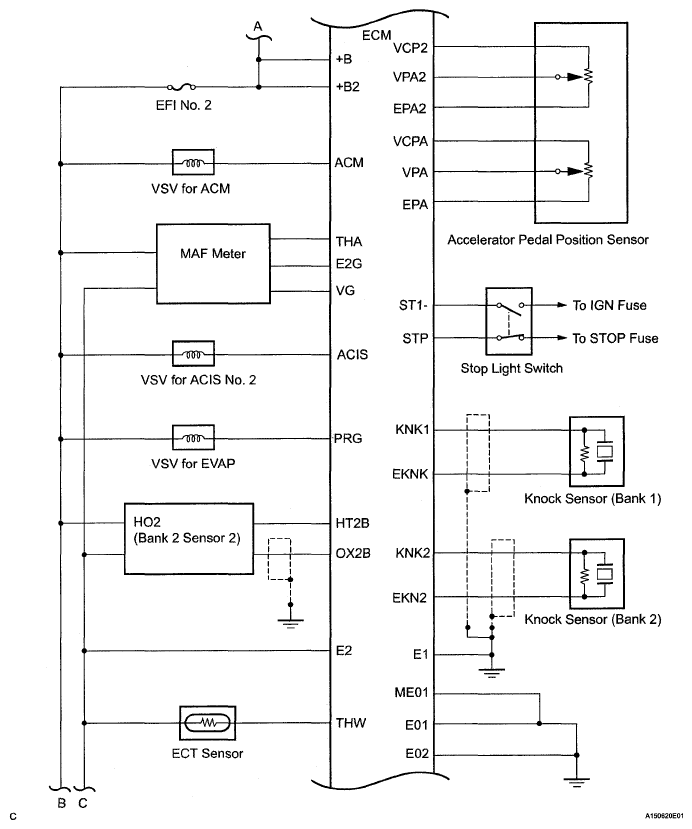

Fig 2: SFI System Diagram (2 Of 4)
G05245527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

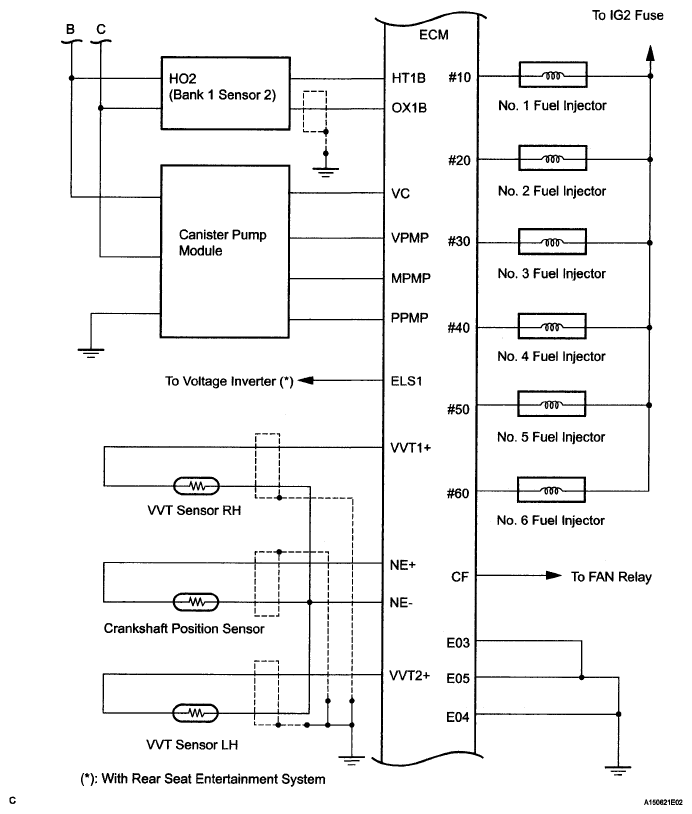

Fig 3: SFI System Diagram (3 Of 4)
G05245528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

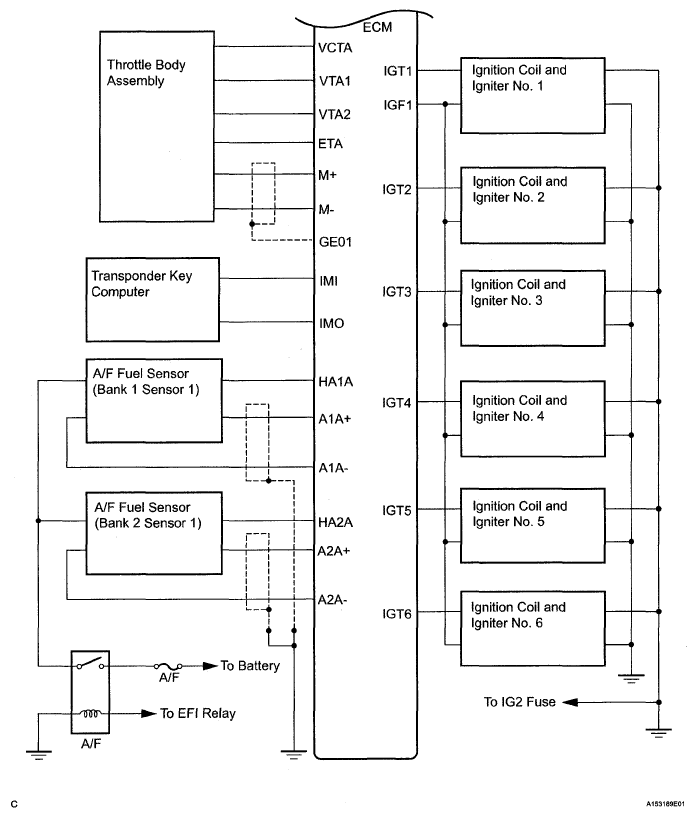

Fig 4: SFI System Diagram (4 Of 4)
G05245529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
