Home >> Toyota >> 2007 >> Highlander Limited, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U151F >> Speed Sensor >> Components

Speed Sensor: Components

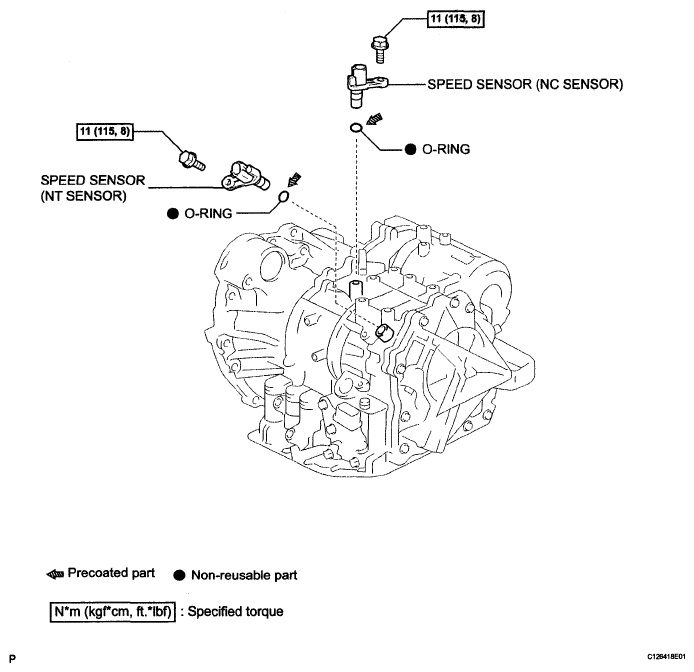

Fig 1: Speed Sensor Replacement Components With Torque Specifications
G05240368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
