Shift Lever: Components

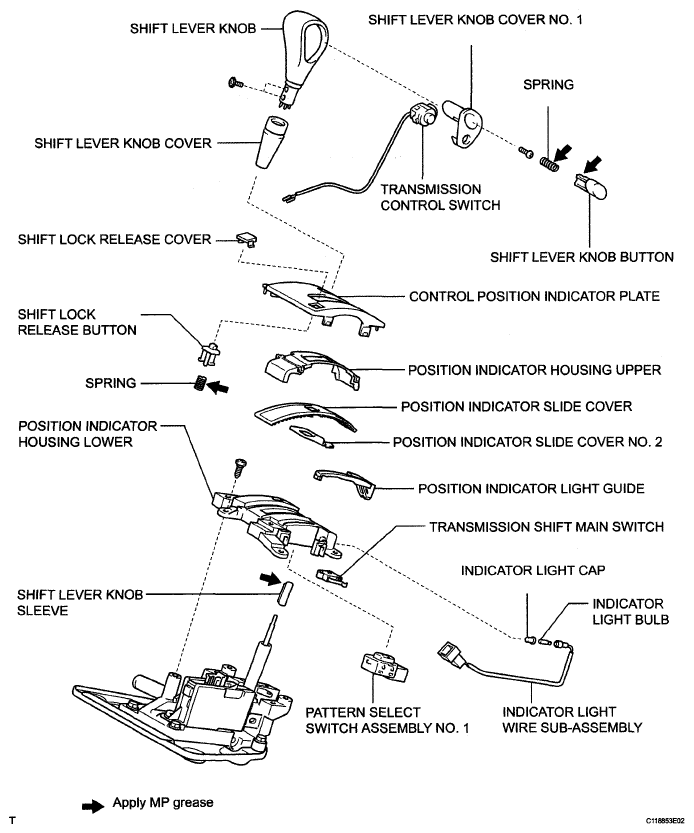

Fig 1: Identifying Shift Lever Components

G05239836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
