Oil Pump: Components

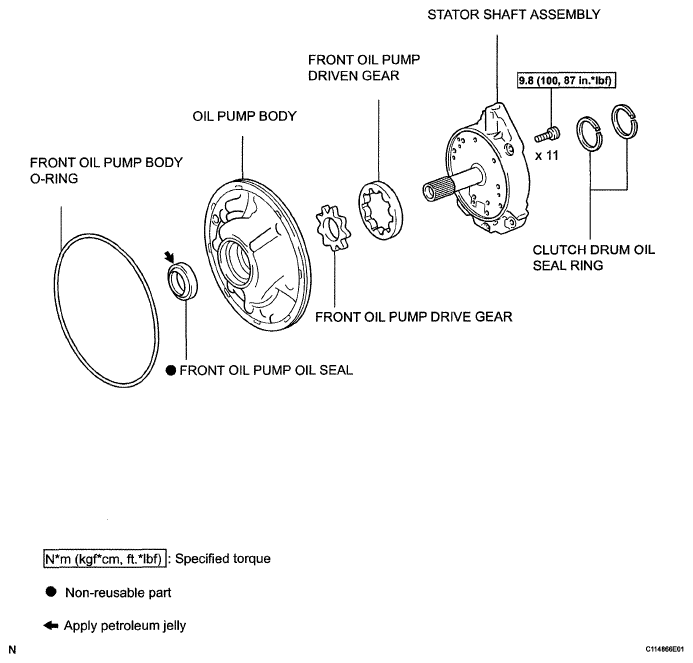

Fig 1: Exploded View Of Oil Pump Components

G05240183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
