Forward Clutch: Components

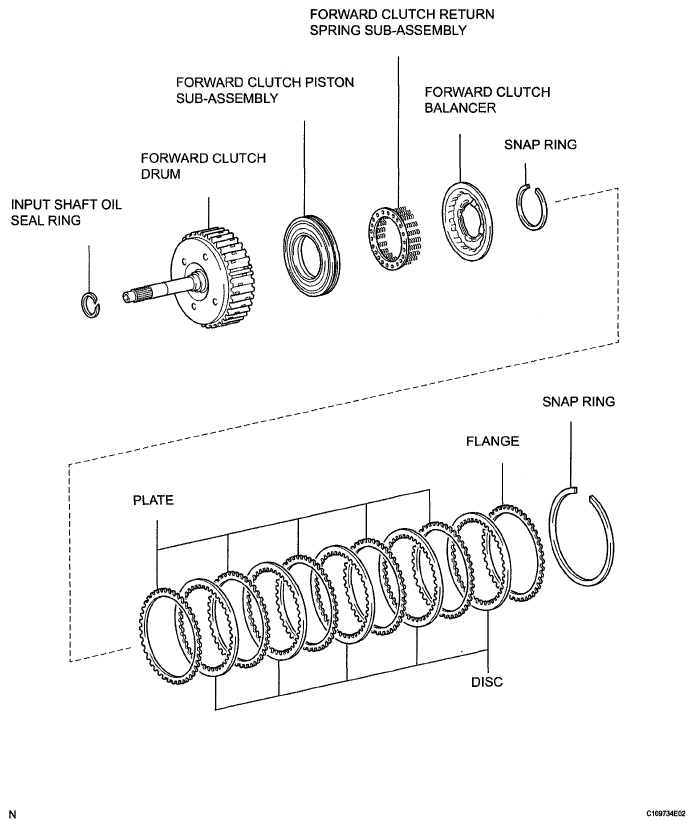

Fig 1: Identifying Forward Clutch Components

G05240212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
