Pattern Select Switch Circuit: Wiring Diagram

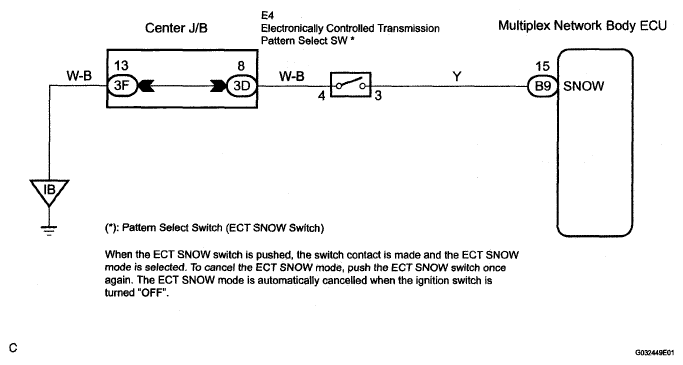

Fig 1: Pattern Select Switch Circuit - Wiring Diagram

G05239766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
