Manual Shifting Test
- PERFORM MANUAL SHIFTING TEST
HINT:
- With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
- If any abnormalities are found in the following test, the problem is in the transaxle itself.

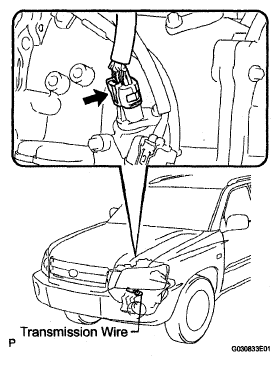

- Disconnect the connector of the transmission wire.
- Drive with the transmission wire disconnected. Shifting the shift lever in the order of L, 2, 3 and D position to check whether the shifting condition changes the table below.MANUAL SHIFTING TEST
Shift Position Shifting Condition L ←→ 2 No Shift (Not Change) 2 ←→ 3 Down Shift ←→ Up Shift 3 ←→ D No Shift (Not Change) HINT:
When driving with the transmission wire disconnected, the shift lever position is in L or 2, the gear position is held in 3rd and the shift lever position is in 3 or D, the gear position is held in 4th. However, when the shift position is in R or P, the operation is same as usual.
- Connect the connector of the transmission wire.
- Clear the DTC (See DTC CHECK / CLEAR ).
