Automatic Transaxle Assembly: Removal

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

1. Remove the bolt and the transmission control cable clamp.
   Fig 1: Installing RH Front Drive Shaft Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire harnesses from the clamp.
2. Remove the 3 bolts and 2 clamps.
   Fig 2: Connecting Wire Harnesses To Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and disconnect the wire harness.
   Fig 3: Connecting Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector (1).
2. Remove the nut (2) and disconnect the starter wire.
3. Remove the 2 bolts (3) and starter assembly.
   Fig 4: Locating Nut And Starter Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

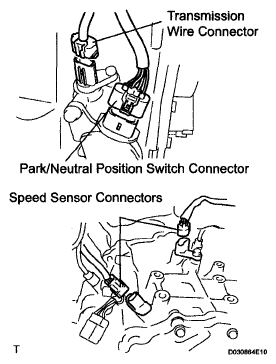

1. Disconnect the transmission wire connector.
2. Disconnect the park/neutral position switch connector.
3. Disconnect the 2 speed sensor connectors.
   Fig 5: Disconnecting Speed Sensor Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and automatic transmission oil cooler tube clamp.
2. Remove the 2 bolts and transmission control cable bracket No. 1.

Fig 6: Identifying Bolts And Transmission Control Cable Bracket No.1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the transmission oil level gauge sub-assembly.
2. Remove the bolt and transmission oil filler tube sub-assembly.
3. Remove the O-ring from the transmission oil filler tube sub-assembly.
   Fig 7: Removing O-Ring From Transmission Oil Filler Tube Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the breather hose from the wire harness bracket.
   Fig 8: Connecting Breather Hose To Wire Harness Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a wrench, disconnect the oil cooler inlet tube No. 1.

   SST 09023-12701

1. Using SST and a wrench, disconnect the oil cooler outlet tube No. 1.

   SST 09023-12701

   Fig 9: Disconnecting Oil Cooler Inlet Tube No 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 bolts and engine mounting bracket front.
   Fig 10: Installing Engine Mounting Bracket Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 5 bolts and transfer stiffener plate RH.
   Fig 11: Installing Transfer Stiffener Plate RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 12: Installing Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 13: Locating Crankshaft Pulley Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts.
4. Separate and remove the automatic transaxle w/ transfer.

HINT:

(See REMOVAL )

HINT:

(See INSPECTION  )
